40W/48V Smart Music Led Strip Dimmable Lights Driver
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land, Others
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300000 pcs/month |
| Supply Ability: | 300000 pcs/month |
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery |
| Certificate: | ISO9001:2015, UL/cUL CE GS FCC RoHS CLASS 2 Listed |
| HS Code: | 850440 |
| Transportation: | Ocean,Air,Express,Land,Others |
| Port: | Shenzhen |

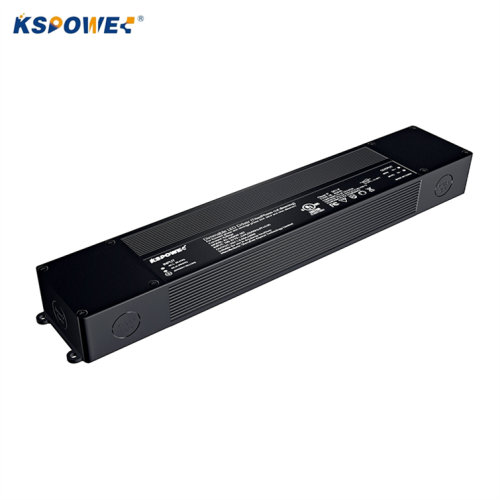

The KSPOWER - HT series triac/phase-cut dimmable power supply 40 Watt 48 Volt is smaller, lighter, has greater operating efficency, has over-current protection, and eliminates problems with buzzing and overheating elv driver. The phase dim 12 volt led driver converts 100V-277V AC to 48V DC while remaining compatible with standard TRIAC wall dimmers (including Lutron, Leviton, and most other standard household wall dimmers). The transformer compatible with forward and reverse phase dimmers. Easy to install, mount, and wire. Variable Power Supplies Included input and output cords can be removed for use in hard wire installations.
Features:
． Class 2 Power Units
． Dimmable with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch
． Super compact Aluminum case
． UL/cUL CE GS FCC RoHS LPS Class P
． IP65 - Outdoor Use
． Built-in PFC function
． 5 Years Warranty
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature
protection, over power protection and short circuit protection
. Compatible with 48v LED Strip light, LED puck light, module light or many other 48v LED lights
Specification:
| Input Voltage |
100~277V AC 47~63Hz |
|||
| Power Factor |
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, full load |
|||
| Output Voltage | 12VDC | 24VDC | 36VDC | 48VDC |
| Rated Current | 3.34A | 1.67A | 1.11A | 0.84A |
|
Rated Power |
40W | |||
|
Ripple & Noise (max.) |
200mVp-p |
250mVp-p |
250mVp-p |
250mVp-p |
| Dimenion |
188*58*36mm(L*W*H)
|
|||
Dimming Connect Drawing:
Dimension Drawing:
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/Brown Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
20
355 x 330 x 195
313 x 64 x 40
0.72
15
