5V 10A 50W UL Listed Switching Power Supply

5V 10A 50W UL Listed Switching Power Supply

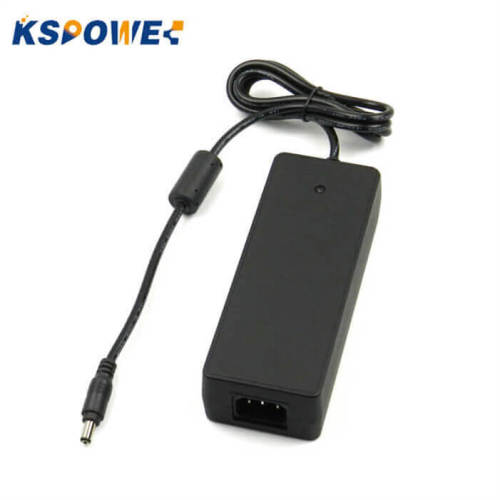

The dc adaptor is a high quality and high PFC, black or white 5Volt 10.0Amp dc output 50w desktop style constant voltage adapter series with green LED indication for power on. This led light power adaptor 5v accepts full range from 100V to 240V AC input voltage and lock type DC connector options. The power source 5v provides 3 years warranty and certified for UL/cUL, GS, CE, PSE, KC, CCC, RoHS safety approvals for I.T.E and Laptop applications. The power transformer 5v is also a class I or II rated and equipped with three standard AC inlets options for IEC320-C6, IEC320-C8 and IEC320-C14.

Features

◆ Desktop style, up to 50 W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 6.732 x 2.795 x 1.653
Dimensions LxWxH (mm): 171 x 71 x 42
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.1W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, IEC/EN62368 60950, IEC61558, AS/NZS62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
