High PFC Universal 130W 26Volt 5Amp AC/DC Transformer

High PFC Universal 130W 26Volt 5Amp AC/DC Transformer

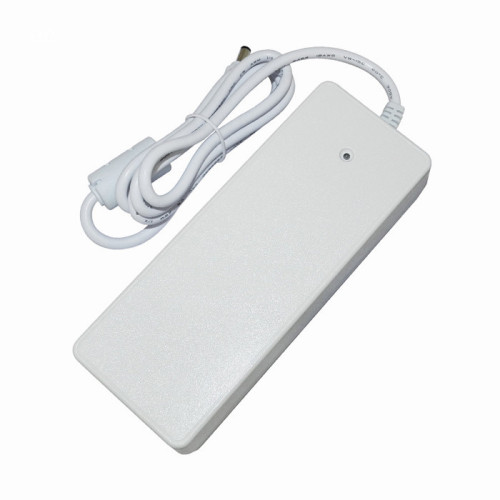

The switching 26 volt power adapter is a high PFC, 130W 26V DC 5A desktop type single output constant voltage laptop power supplies with universal AC input voltage range from 100V to 240V. The external power adapter passed limited power source(LPS) and approved for UL/cUL RCM GS KC RoHS FCC and CE CoC Tier requirements. This 130w ac dc adaptor also meet the working efficiency up to 88% and the extremely low no-load power consumption below 0.21W, provide 3 years warranty.

Features

◆ Desktop style, up to 130W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Pass LPS (Limited power source)

◆ High power factor

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 6.772 x 3.346 x 1.575
Dimensions LxWxH (mm): 172 x 85 x 40
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL62368, UL60950, CSA22.2, TUV EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
