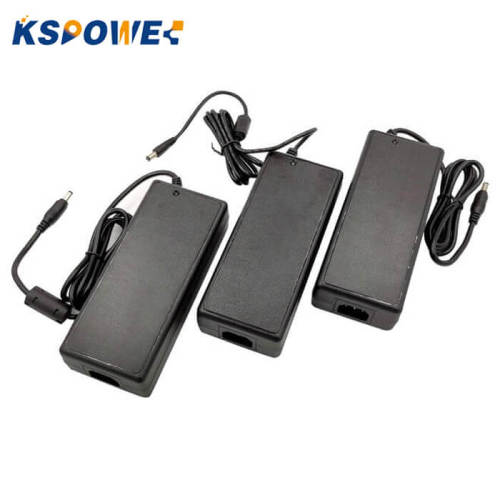

18 Volt Power Supply 18V/7A for Home Improvement
The 18v dc voltage supplies is a high quality and high PFC, black or white 18Volt 7.0Amp single output 126w desktop style constant voltage power supplies series with green LED indication for power on. This power supplies circuit 126w accepts full range from 100V to 240V AC input voltage and lock type DC connector options. The 18v dc power supplies provides 3 years warranty and certified for UL/cUL, GS, CE, PSE, KC, CCC, RoHS safety approvals for I.T.E and home applications. The 18v transformer supplies is also a class I or II rated and equipped with three standard AC inlets options for IEC320-C6, IEC320-C8 and IEC320-C14.
Features
◆ Desktop style, up to 126W continuous power
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin): IEC320-C8;
ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14
◆ Pass LPS (Limited power source)
◆ Compact Size, fully enclosed plastic case
◆ LED indicator for power on
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Dimensions LxWxH (in): 6.732 x 2.795 x 1.653
Dimensions LxWxH (mm): 171 x 71 x 42
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.1W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, IEC/EN62368 60950, IEC61558, AS/NZS62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS
Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
|
Mechanical Specification
|
