48 Watt 12V4A HS Code UL Led Driver
-
$4.50≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 500000 |
|---|---|
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery |
| Transportation: | Ocean,Air,Express,Land |
| Port: | Shenzhen |

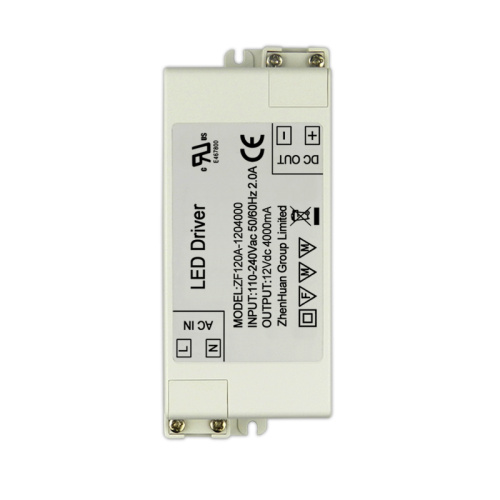

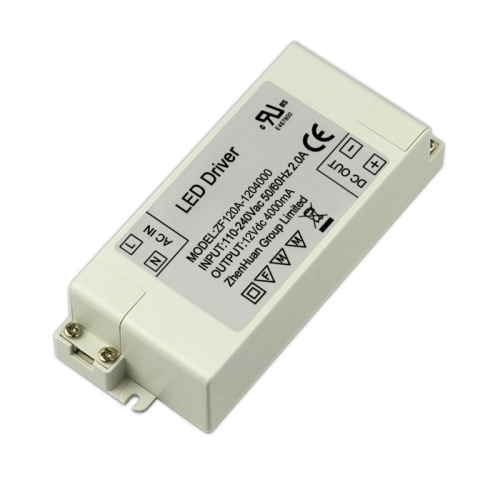

48 Watt 12V4A HS Code UL Led Driver
The ZF120A-1204000 constant voltage led driver is one low cost, 48W 12VDC 4000mA universal AC input voltage range from 110VAC to 240VAC single DC output led driver series. This ul led driver transformer is a class II power units (have not earth pin), level IP20 non-waterproof led driver for indoor use. The led power driver adopts small and compact size plastic case for indoor use only and includes over-voltage protection, over-current protection and short circuit protection.
Features
◆ Suitable for indoor LED lighting and moving sign applications
◆ Constant voltage design
◆ Rectangular plastic case with IP20 level
◆ Universal AC input / Full range
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Class 2 power unit
◆ 1 year warranty
Specifications
|
Color: White |
| Dimensions LxWxH (in): 4.724 x 1.574 x 1.259 |
| Dimensions LxWxH (mm): 120 x 50 x 32 |
| Input: 100-240V AC±10% 47~63Hz |
| Output type: DC and Single output |
| Working Environmen: 0℃-40℃ (0%-90%RH) |
| Storage Environment:-20℃-60%℃ (0%-90%RH) |
| Load Regulation: ±5% |
|
RoHS Compliant: Yes |
| Ripple & Noise(max): < 150mVp-p |
|
Safety Approvals: UL/cUL 8750 FCC CE ...

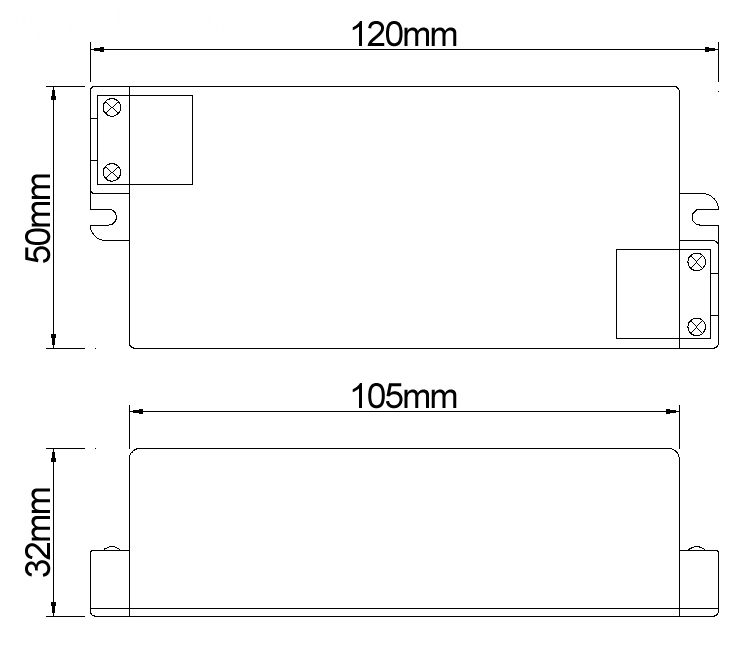

Mechanical Specification
|
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/White Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
50
380 x 290 x 145
55 x 35 x 125
0.165
10
