15W 12V DC 1.25A White LED Power Driver
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land, Others
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500000 |
| Supply Ability: | 500000 |
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery,DDP,DDU |
| Certificate: | ISO9001:2015, UL, CE, RoHS... |
| HS Code: | 850440 |
| Transportation: | Ocean,Air,Express,Land,Others |
| Port: | Shenzhen |

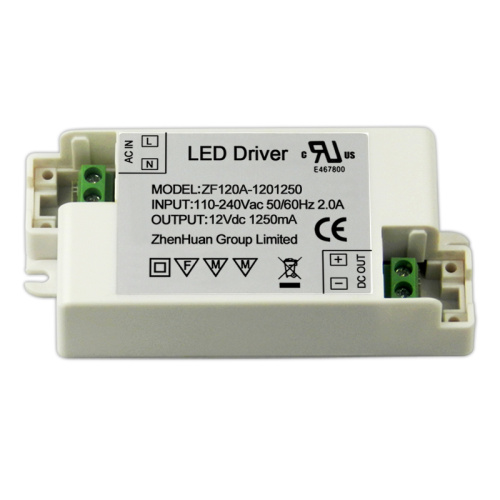

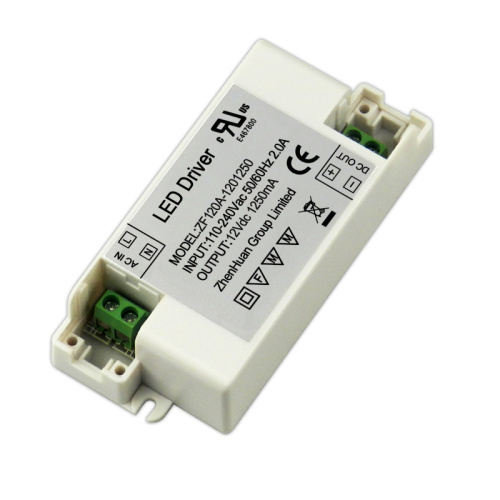

15W 12V DC 1.25A White LED Power Driver
The 12V LED Lighting driver is one low cost, 15W 12V 1250mA AC/DC constant voltage mode single output AC to DC led driver series. The 12v led transformer accepts the universal AC input voltage range 100VAC to 240VAC and provides 12 months warranty. With the features of Class II design (without FG pin) and adopts the flame retardant rectangular plastic enclosure with IP20 level, high power led driver is certified for UL/cUL, CE and RoHS the international safety regulations.
Features
◆ Constant voltage design
◆ Rectangular plastic case with IP20 level
◆ Universal AC input / Full range
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Class 2 power unit
◆ Suitable for indoor LED lighting and moving sign applications
◆ 1 year warranty
Specifications
|
Color: White |
| Dimensions LxWxH (in): 2.992 x 1.496 x 0.945 |
| Dimensions LxWxH (mm): 76 x 38 x 24 |
| Input: 100-240V AC±10% 47~63Hz |
| Output type: DC and Single output |
| Working Environmen: 0℃-40℃ (0%-90%RH) |
| Storage Environment:-20℃-60%℃ (0%-90%RH) |
| Load Regulation: ±5% |
|
RoHS Compliant: Yes |
| Ripple & Noise(max): < 150mVp-p |
|
Safety Approvals: UL/cUL 8750 FCC CE ...
Mechanical Specification
|
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/White Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
200
345 x 280 x 230
42 x 26 x 80
0.055
12
