24W 24Volt 1000ma Led Strip Driver LG TV
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land, Others
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500000 |
| Supply Ability: | 500000 |
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery,DDP,DDU |
| Certificate: | ISO9001:2015, UL, CE, RoHS... |
| HS Code: | 8504401 |
| Transportation: | Ocean,Air,Express,Land,Others |
| Port: | Shenzhen |

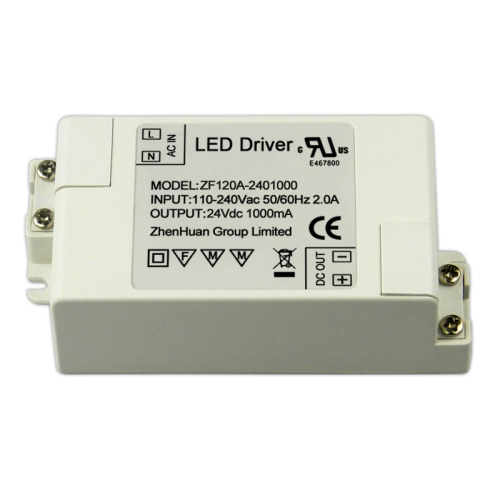

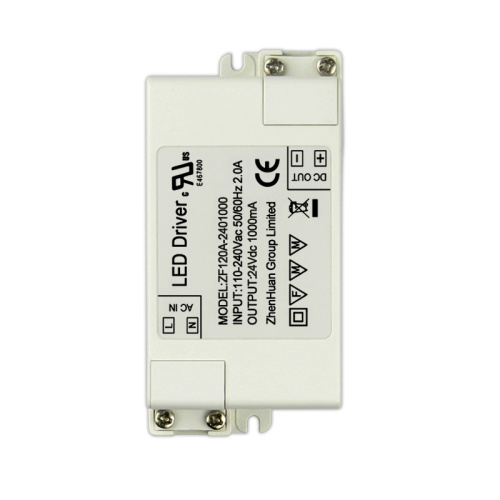

24W 24Volt 1000ma Led Strip Driver LG TV
The 24v constant voltage led driver is one 24W 24vdc 1000ma high reliability AC/DC constant voltage mode dc output LED switching power supply. This led driver adopting fully isolated plastic case and provides safety protections for over voltage, over current and short circuit. Follows the features of Class II design (without FG pin) and load power consumption less than 0.5W, the 24v led driver power supply can provide customers the most efficient power solution for indoor LED lighting and moving sign applications.
Features
◆ Constant voltage design
◆ Rectangular plastic case with IP20 level
◆ Universal AC input / Full range
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Class 2 power unit
◆ Suitable for indoor LED lighting and moving sign applications
◆ 1 year warranty
Specifications
|
Color: White |

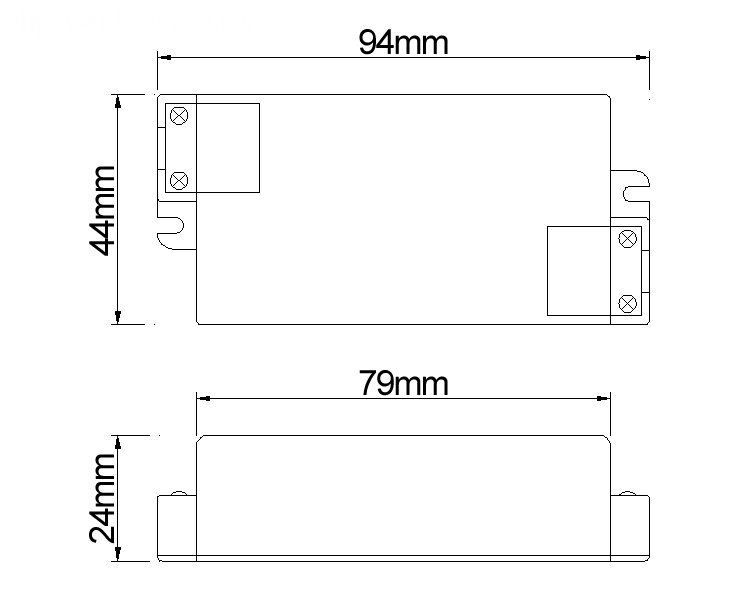

| Dimensions LxWxH (in): 3.740 x 1.732 x 0.945 |
| Dimensions LxWxH (mm): 95 x 44 x 24 |
| Input: 100-240V AC±10% 47~63Hz |
| Output type: DC and Single output |
| Working Environmen: 0℃-40℃ (0%-90%RH) |
| Storage Environment:-20℃-60%℃ (0%-90%RH) |
| Load Regulation: ±5% |
|
RoHS Compliant: Yes |
| Ripple & Noise(max): < 150mVp-p |
|
Safety Approvals: UL/cUL 8750 FCC CE ...
Mechanical Specification
|
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/White Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
100
295 x 270 x 225
100 x 55 x 24
0.1
11
