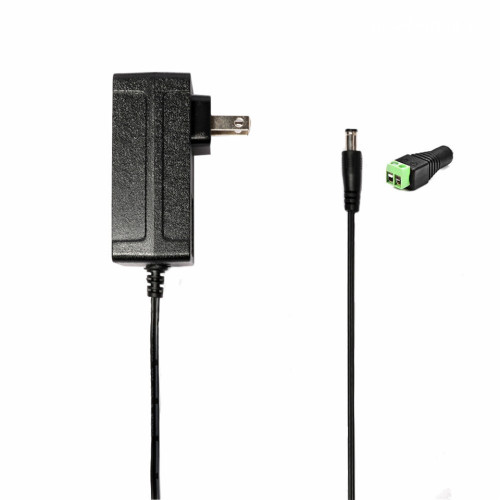

9Volt 2Amp UL Class 2 Power Supply Adapter
  • 9Volt 2Amp UL Class 2 Power Supply Adapter
9Volt 2Amp UL Class 2 Power Supply Adapter
9Volt 2Amp UL Class 2 Power Supply Adapter
9Volt 2Amp UL Class 2 Power Supply Adapter

9Volt 2Amp UL Class 2 Power Supply Adapter

Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Transportation:
Ocean, Air, Express, Others, Land
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 200000
Supply Ability: 500000
Payment Type: T/T,Paypal
Incoterm: FOB,EXW,DDP,DDU,Express Delivery
Certificate: ISO9001:2015,UL CE FCC RCM KC GS PSE CCC...
HS Code: 850440
Transportation: Ocean,Air,Express,Others,Land
Port: Shenzhen
Product Description
Product Description

9Volt 2Amp UL Class 2 Power Supply Adapter

The wall mounted power supply is a high reliability, 18W 9VDC 2.0A white or black universal input voltage ac to dc constant voltage ac dc adapter class 2 power unit equipped with an AC plug US 2-PIN type to export for United States and Canada. The 120v ac class 2 adapter has the complete UL cUL Class 2 and CB FCC EMC LVD RoHS safety certifications to provides customers with this advantage to save large amounts of money on certification charge and reduce the complicated certificate programs for the end applications. High energy efficiency level VI and low no-load power consumption allows the desktop power supply output voltage 9v to operate at low temperatures.

Features

◆ US blade wall-mount style, up to 18W continuous power

Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ Class 2 power units

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 3.031 x 1.850 x 1.220
Dimensions LxWxH (mm): 77 x 47 x 31

Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, IEC/EN62368 60950, IEC61558, AS/NZS62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS

Applications: 3D Printer, LCD Monitor, LED Lights, CCTV, Digital Photo Frame, Mobile Phone, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Security System Products, Massage Products, Electronics Products etc


Mechanical Specification


Package


Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/Brown Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package 60 360 x 352 x 250 68 x 55 x 115 0.15 10
