20V3A 60W Desktop DC Power Adapter for Laptop

20V3A 60W Desktop DC Power Adapter for Laptop

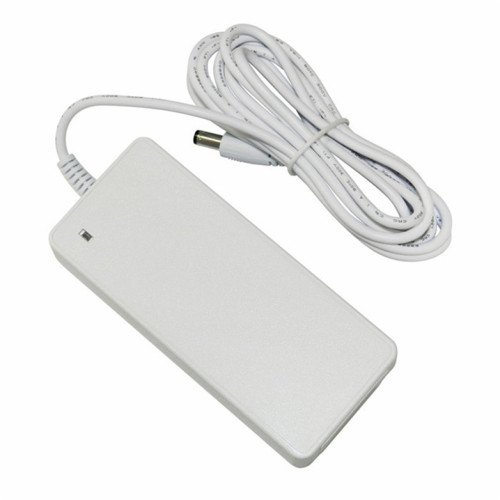

The desktop series power adapter is a white desktop style, 12V 15V 16V 18V 19V 20V 24V 26V 28V 30V 32V 36V constant voltage mode universal ac input range from 100vac to 240vac single output power supplies with UL/cUL FCC PSE CE GS RCM CCC KC KCC RoHS safety approvals. The AC DC power supply is designed to meet US DoE Level VI energy efficiency standards and equipped with three standard AC inlets options for IEC320-C6, IEC320-C8 and IEC320-C14. This power dc adaptor adopts the eco-friendly PC flame retardant plastic housing that the external power adapters can effectively prevent customers from electric hazard.

Features

◆ Desktop style, up to 60W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Class 2 power units

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 4.488 x 2.007 x 1.220
Dimensions LxWxH (mm): 114 x 51 x 31
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, CSA22.2, TUV EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
