14.4V/1.25A 18W Power Adapter for Led Strip Lights

14.4V/1.25A 18W Power Adapter for Led Strip Lights

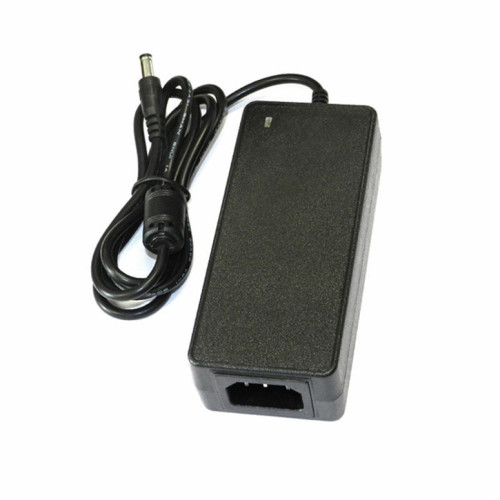

The DC 14.4V led power supply adapter is a high quality, white or black 14.4Volt 1250mA dc output 18w desktop style constant voltage external adaptor with green LED indication for power on. This universal ac to dc adapter accepts full range from 100V to 240V AC input voltage and lock type DC connector options. The 14.4vdc rohs adapter is a class 2 rated and certified for UL/cUL, GS, CE, PSE, CB, KC, CCC safety standards for led lcd applications. The series led power transformer also provides 3 years warranty and high energy efficiency level VI for the desktop power supplies 18w.

Features

◆ Desktop style, up to 18W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 3.740 x 1.772 x 1.259
Dimensions LxWxH (mm): 95 x 45 x 32
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.1W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, IEC/EN62368 60950, IEC61558, AS/NZS62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
