90W 24V 3.75Amp Desktop AC DC Power Adapter

90W 24V 3.75Amp Desktop AC DC Power Adapter

Features

◆ Model: ZF120A-2403750

◆ Desktop style, up to 100W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

◆ Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc

The desktop power adapter is a white desktop style, 100W 90W 24Volt 3750mA 4000mA universal ac input 100vac to 240vac single output power supplies with UL/cUL FCC PSE CE GS RCM safety approvals. The white led power supply is designed to meet US DoE Level VI energy efficiency standards and equipped with three standard AC inlets options for IEC320-C6, IEC320-C8 and IEC320-C14. This power adaptor laptop adopts the eco-friendly PC flame retardant plastic housing that the adapters can effectively prevent customers from electric hazard.

Specifications

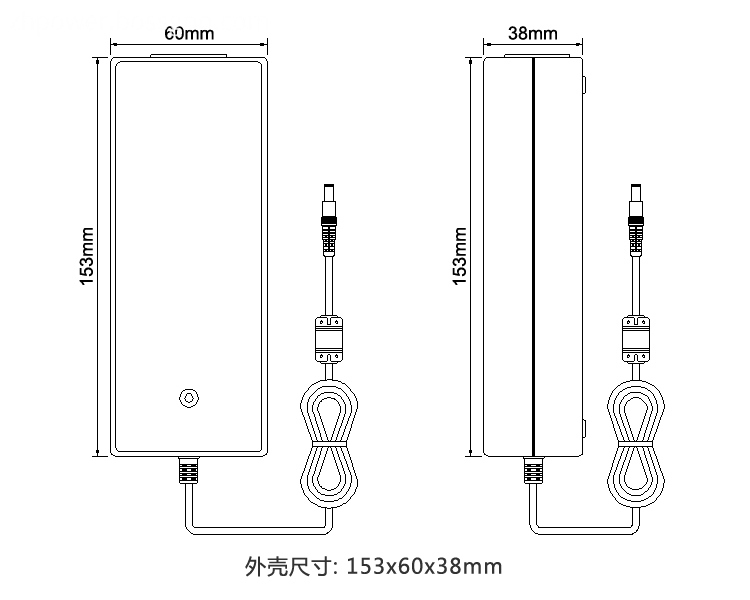

Dimensions LxWxH (in): 6.024 x 2.362 x 1.496
Dimensions LxWxH (mm): 153 x 60 x 38
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL60950, CSA22.2, TUV EN60950, AS/NZS 60950, GB4943, J60950(H22), K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
