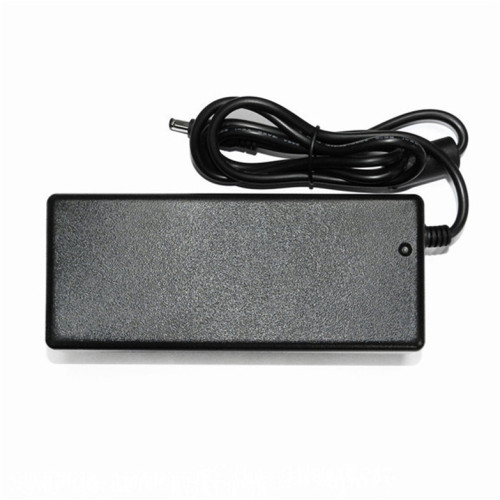

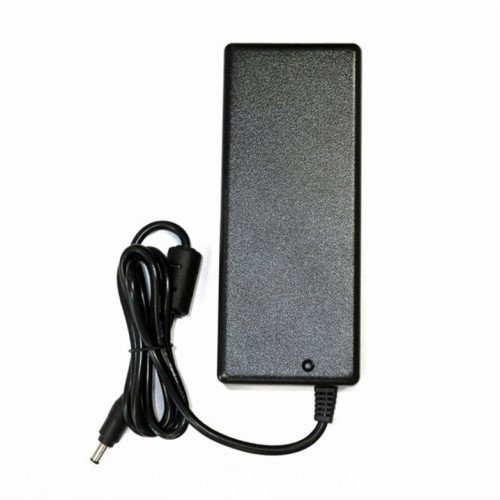

48W DC 12V 4A ITE Power Supply Adapter

48W DC 12V 4A ITE Power Supply Adapter

The ITE Power Supply Adapter is a low cost, 48w 12volt 4amp black desktop type single output DC power adaptor designed to meet Level VI energy efficiency standards. This 12 volt power supply provides complete input voltage 100 to 240VAC and passed UL/cUL TUV GS CE PSE KC CCC certificates. Exploiting Class II design (without FG pin) or Class I design (with FG pin) options and adopting the PC flame retardant plastic enclosure, power adaptor 12v 4a can provide the best and most consistent adaptors for all power solutions.

Features

◆ Desktop style, up to 50W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 4.488 x 2.007 x 1.220
Dimensions LxWxH (mm): 114 x 51 x 31
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL60950, CSA22.2, TUV EN60950, AS/NZS 60950, GB4943, J60950(H22), K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
