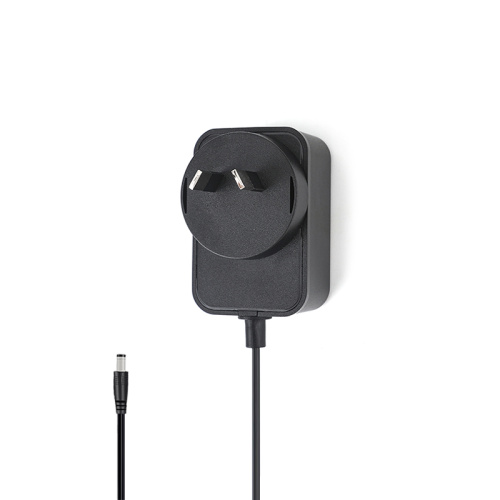

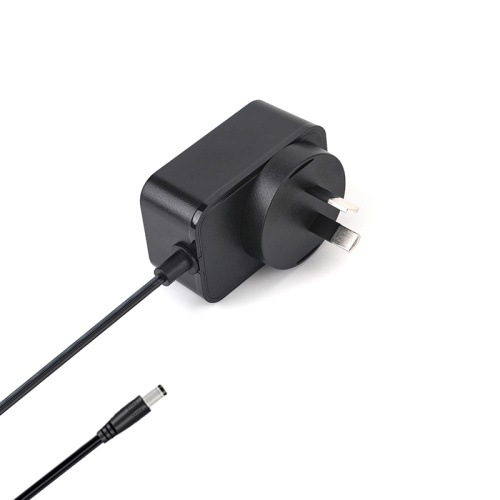

AU Plug 5V2A AC-DC Adapter Transformer SAA Certified

AU Plug 5V2A AC-DC Adapter Transformer SAA Certified

The power supplies is a highly reliable, 9VDC 5VDC 8VDC 12VDC 14VDC 15VDC 18VDC 19VDC 20VDC 24VDC 28VDC 30VDC 36VDC wall-mounted style single-output AC DC power adaptor series. This SAA RCM power supply is equipped with an AC plug AU type and Class II rated without earth pin, accepting the universal AC input voltage range. Featuring the working efficiency of level VI, low no-load power consumption below 0.1W, wall plug in power supply is compliant with the latest USA energy regulation. Universal ac dc adapter provides safety protections for over current, over voltage and short circuit.

Features

◆ AU blade wall-mount style, up to 18W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ Class 2 power units

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 2.953 x 1.575 x 1.181
Dimensions LxWxH (mm): 75 x 40 x 30
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
Applications: 3D Printer, LCD Monitor, LED Lights, CCTV, Digital Photo Frame, Mobile Phone, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Security System Products, Massage Products, Electronics Products etc
