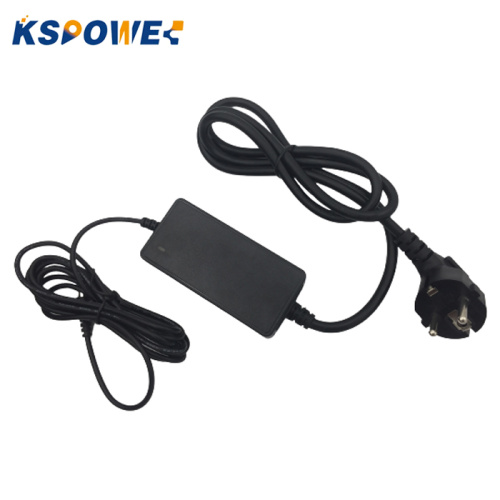

Cord-to-cord 8.4VDC 8A UL Battery Charger Power Supply

Cord-to-cord 8.4VDC 8A UL Battery Charger Power Supply

The all-in-one version battery charger is one constant voltage and constant current mode, 8.4Volt 8000mA universal ac input 100vac to 240vac single output power supplies with UL/cUL FCC PSE CE GS RCM safety approvals. The 8.4v for 2S li-ion battery charger is designed to meet US DoE Level VI energy efficiency standards and equipped with three standard 2 pin or 3 pin AC plugs options for EU Plug, US Plug, KR Plug, UK Plug and AU Plug. This ac dc adaptor charger adopts the eco-friendly PC flame retardant plastic housing that the adapter charger can effectively prevent customers from electric hazard.

Features

◆ All-in-one desktop style, charger for Li-ion batteries(lithium iron and lithium manganese)

◆ Constant voltage and constant current mode

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

ClassⅠpower(with earth pin)

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 6.024 x 2.362 x 1.496
Dimensions LxWxH (mm): 153 x 60 x 38

Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Green adaptor with charging function
For high surge current equipment
