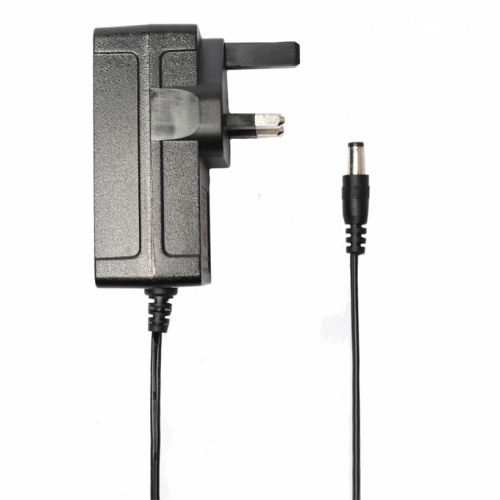

8.4Volt 3000mA Wall Mount Battery Charger Golf Cart

8.4Volt 3000mA Wall Mount Battery Charger Golf Cart

The wall plug power charger is a fast charge function, 8.4VDC 3000ma constant voltage and constant current mode single output dc power battery charger with equipped with an AC wall plug UK 3-PIN type. The 8.4V universal adapter charger for 2S li-ion battery is Class II construction without ground wire and meet CB CE GS RoHS safety requirements to provides customers with traceable quality evaluation and safety products. Our ac dc battery charger has 12 Years rich experience in handling ordersfor heavy buyers with professional process and remarkable after-sale service.

Features

◆ Wall mount style, charger for Li-ion batteries(lithium iron and lithium manganese)

◆ Constant voltage and constant current mode

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ Class 2 power units

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 3.031 x 1.850 x 1.220
Dimensions LxWxH (mm): 77 x 47 x 31

Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%

Safety Standards: UL1310, UL62368, CSA22.2, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Green adaptor with charging function

For high surge current equipment
