12Volt 80W Dimmable Outdoor Lighting Low Voltage Transformer
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Air, Express, Land, Others
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 300000 pcs/month |
| Supply Ability: | 300000 pcs/month |
| Payment Type: | T/T,Paypal,Others |
| Incoterm: | FOB,EXW,Express Delivery,DDP,DDU |
| Certificate: | ISO9001:2015, UL/cUL CE GS FCC RoHS CLASS 2 Listed |
| HS Code: | 850440 |
| Transportation: | Ocean,Air,Express,Land,Others |
| Port: | Shenzhen |

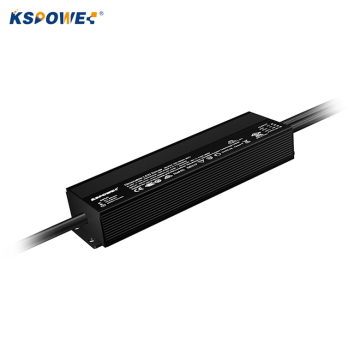

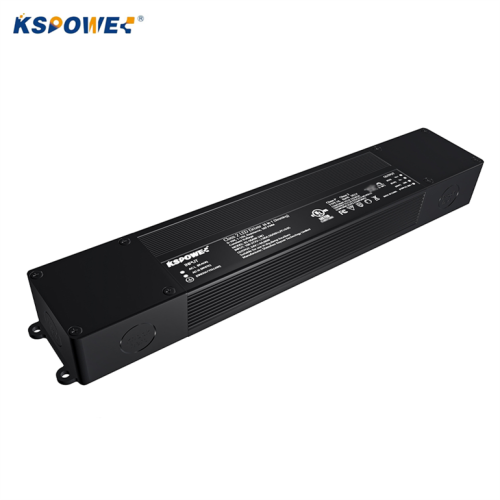

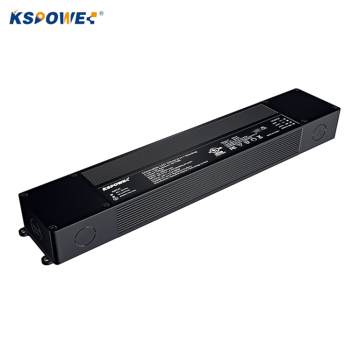

The KSPOWER brand - H series 4-in-1 dimmable LED driver 80 Watt 12Volt is one black color, universal AC input voltage range from 100V-277VAC constant voltage led driver certified to meet UL cUL Class 2 and CE GS safety approvals. The led dimming power supply 12v use low profile aluminum case with junction box makes 12v led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, the 0-10V 1-10V PWM dimmable led power supply 12V provide 5 years warranty and outstanding led dimming peformance.
Features:
． Dimmable Functions: 0-10V, 1-10V, 10V PWM signal, resistance
． Super compact Aluminum case
． UL/cUL CE GS CLASS 2 FCC RoHS LPS
． IP65 - Indoor or Outdoor Use
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature
protection, over power protection and short circuit protection
Specification:
| Input Voltage |
100~277V AC 47~63Hz |
|||
| Power Factor |
PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, full load |
|||
| Output Voltage | 12VDC | 24VDC | 36VDC | 48VDC |
| Rated Current | 5A | 2.5A | 1.67A | 1.25A |
|
Rated Power |
60W | |||
|
Ripple & Noise (max.) |
200mVp-p |
250mVp-p |
250mVp-p |
250mVp-p |
| Dimenion |
188*58*36mm(L*W*H)
|
|||
Dimming Connect Drawing:
Dimension Drawing:
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/Brown Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
20
355 x 330 x 195
313 x 64 x 40
0.72
15
