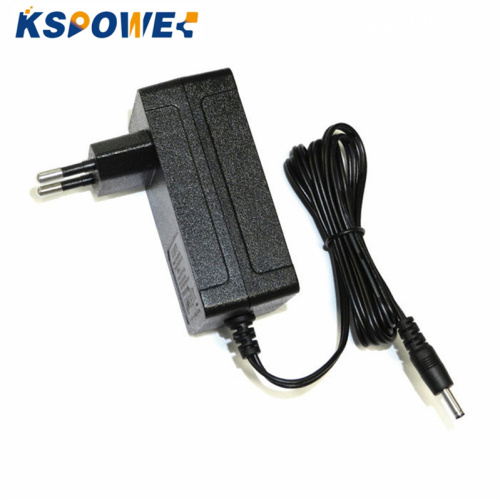

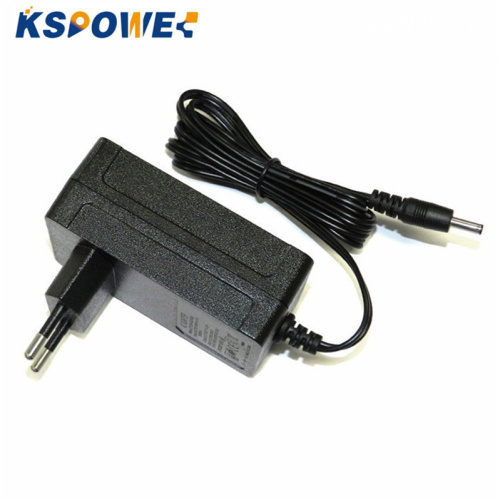

25.2V 1000mA KC Wall AC Power Li-ion Charger

25.2V 1000mA KC Wall AC Power Li-ion Charger

The 25.2V 1.0A power battery charger is a highly reliable, 5V 6V 8V 8.4V 9V 12V 12.6V 15V 18V 16.8V 21V 25.2V 29.4V 24V 36V wall-mounted style single-output AC DC power adaptor charger series. This CE GS KC RoHS UL battery charger is equipped with an AC plug EU / KR type and Class II rated without earth pin, accepting the universal AC input voltage range. Featuring the working efficiency of level VI, low no-load power consumption below 0.1W, wall plug in power charger is compliant with the latest VI energy regulation. Universal ac plug dc adapter provides safety protections for over current, over voltage and short circuit.

Features

◆ Wall mount style, charger for Li-ion batteries(lithium iron and lithium manganese)

◆ Constant voltage and constant current mode

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ Class 2 power units

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 3.031 x 1.850 x 1.220
Dimensions LxWxH (mm): 77 x 47 x 31
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: DC and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, CSA22.2, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Green adaptor with charging function

For high surge current equipment
