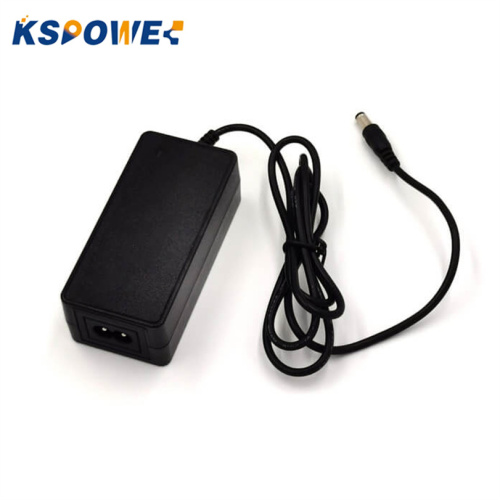

18V/1.5A DC Electrical Class 2 Power Supply Adaptor

18V/1.5A DC Electrical Class 2 Power Supply Adaptor

The class 2 power supply adapter is a high quality, 18v 1500ma 27w dc single output desktop style constant voltage mode power adaptor series with green LED indication for power on. This universal ac to dc adapter accepts full range 100-240V AC input voltage and lock type DC connector options. RoHS ac adapter is a class 2 rated and certified for UL/cUL, GS, CE, PSE, KC, CCC safety standards for AV and ITE applications. We also provides 3 years warranty and high quality Level VI energy saving for the desktop power supplies.

Features

◆ Desktop style, up to 27W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Pass LPS (Limited power source)

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 3.740 x 1.772 x 1.259
Dimensions LxWxH (mm): 95 x 45 x 32
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.1W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
