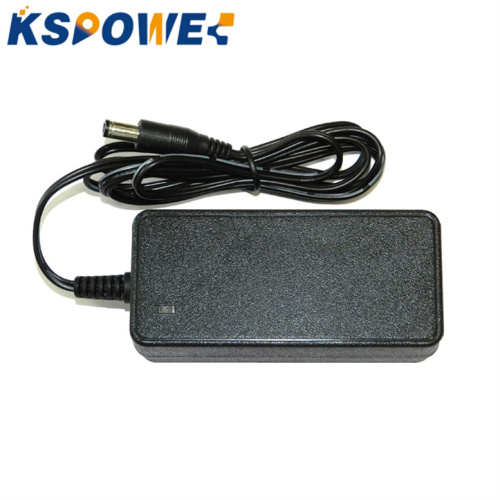

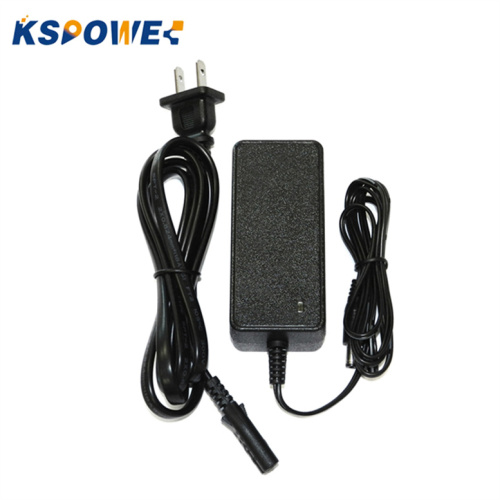

UL 12.6V 3A AC DC 18650 Battery Charger

UL 12.6V 3A AC DC 18650 Battery Charger

The 12.6v dc adapter charger is a desktop version 12.6 volt 3 amp for 3S battery, accepts universal AC input voltage 100-240VAC battery charger constant voltage and constant current mode safety mark power charger with two colors red and green led indicator for power on. The 12.6v li-ion battery charger is our latest adapter charger product, includes 8 safety protections for over voltage, over current and short circuit. The class 2 battery charger following the feature of energy efficiency Class 6, the ac to dc charger is also designed to pass UL/cUL CE KC CB GS RoHS PSE CCC safety marks and EMI/EMC FCC requirements.

Features

◆ Desktop style, charger for Li-ion batteries(lithium iron and lithium manganese)

◆ Constant voltage and constant current mode

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin): IEC320-C8;

ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14

◆ Compact Size, fully enclosed plastic case

◆ 2 colors LED indicator for charging status(Green and Red light)

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 3.740 x 1.772 x 1.259
Dimensions LxWxH (mm): 95 x 45 x 32
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage and current mode
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 1.0W
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise: <150mV
Accuracy: ±2%
Safety Standards: UL1310, UL62368, CSA22.2, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
