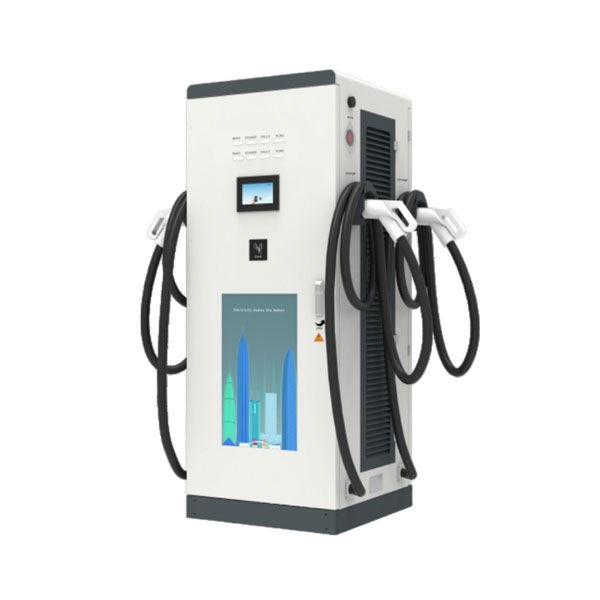

ocpp 240kw ev fast charging station multi plug
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Others
- Port:
- shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,D/P,Paypal |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
| Transportation: | Ocean,Land,Others |
| Port: | shenzhen |
240KW DC Chargring Pile Applicable Scenes:
They are suitable for occasions such as city special charging stations that provide charging for bus, taxi, public service vehicles, sanitation vehicles,logistics vehicles, etc.; city public charging stations that provide charging for private cars, commuter, bus; intercity highway charging stations and other occasions that need special DC fast charging.
240KW DC Chargring Pile Technical Data
|
S. NO. |
Parameters |
Requirements |
| General Requirements | ||
| 1 |
EV charger Type |
DC |
| 2 |
Charger Capacity |
240KW |
| 3 |
Model No. |
ENC-DCL240D SAE-DCL240D JAN-DCL240D |
| 4 |
Mounting |
Ground mounted |
|
Input Requirements |
||
| 5 |
AC Supply System |
Three-Phase, 5 Wire AC system |
| 6 |
Nominal Input voltage |
380V ± 15% |
| 7 |
Input frequency |
50Hz, ±1.5Hz / 60Hz, ±1.5Hz |
|
Environmental Requirements |
||
| 8 |
Ambient Temperature Range
|
-25 to 55°C |
| 9 |
Ambient Humidity |
5 to 95% |
| 10 |
Storage temperature |
-40 to 70°C |
|
Mechanical Requirements |
||
| 11 |
IP Ratings |
IP 54 |
| 12 |
Cooling |
Forced air cooled |
|
Output Requirements
|
||
| 13 |
Number of outputs |
4 |
| 14 |
Type of each output |
200-750VDC(+20% and -20%) |
| 15 |
Output Current |
Max. 400Amp |
| 16 |
Power Factor
|
≥0.99(50% load above) |
|
User Interface & Display Requirements |
||
| 17 |
Display & touch-screen size |
7 inches |
| 18 |
User Authentication |
Mobile application or User interface / QR Code/RFID Card
/Password Login
|
| 19 |
Metering Information |
Consumption Units |
|
Communication Requirements |
||
| 20 |
Communication between
EVSE and Central Server
|
OCPP1.6Jprotocol (optional) |
| 21 |
Interface between charger and CMS |
Ethernet and GPRS Modem |
|
Protection & Safety Requirements |
||
| 22 |
Safety Parameters |
Over current, under voltage, Residual current, Surge protection, leakage protection, Short circuit, Over temperature, etc. |
| 23 |
Power failure |
If there is a power failure, user is indicated about this. |
240KW DC Chargring Pile Features:
1、Simple operation, convenient installation;
2、High efficiency, reliable and stable performance;
3、Friendly interaction interface, 7inch color touch screen;
4、Support multiple modes of charging, operation management and payment;
5、Support 3G/4G, Ethernet or wireless telecommunication;
6、Support RFID Card/OCPP 1.6J (optional);
7、Support CCS-2/CCS-1CHAdeMO connector(or Socket)optional;
8、Overload integrated Protection;
9、Support online data upgrade.
