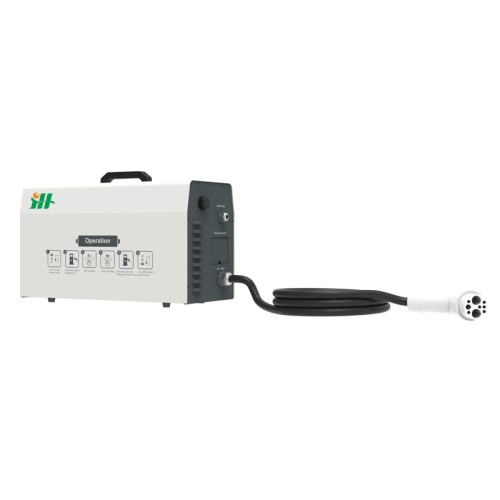

portable led display 7Kw DC charger

Intelligent portable led display 7Kw DC  ev charging station Features:
1. Perfect protection: overload protection, short circuit protection, leakage protection function.
2.RCD Type A is built in, RCCB is optional
3. Built-in circuit breaker
4.Magnetic Lock built-in
5. Can be programmed
6.WIFI connection is optional

Features:

1. Perfect protection and alarm function: input overvoltage/undervoltage, output overvoltage, overcurrent, overtemperature protection, output undervoltage alarm, output short circuit protection.

2, LED display output voltage, output current, group address, protocol, module address, manual or automatic, fault information.

3, support CAN, 485 bus communication, power modules can be controlled by software grouping.

4, using DSP digital control, support voltage and current regulation.

5, has four remote functions, including remote control, remote communication, remote testing and remote adjustment with battery current anti-reverse charging protection circuit, support for hot swap.

How to use

Four options:

A. Automatic start charging

1. Turn on the power switch, the display shows the standby state, then starting completed;

2. As shown, plug in the charging plug, the charging station indicator shows green, when the charging lamp flashes, it means that the charging has started;

3.after charging is completed, pull out the cable and insert the cable into the socket or on the cable hook.

B. Button start charging

1. Turn on the power switch, the display shows standby, start complete;

2. As shown, plug in the charging plug, the charging station indicator shows green, press the right button of the charging station, when the button lights up as shown, the charging lamp flashes and flashes, indicating that charging has started;

3. After charging is completed, please press the button, pull out the charging cable, insert the cable into the socket or store it on the cable hook.
