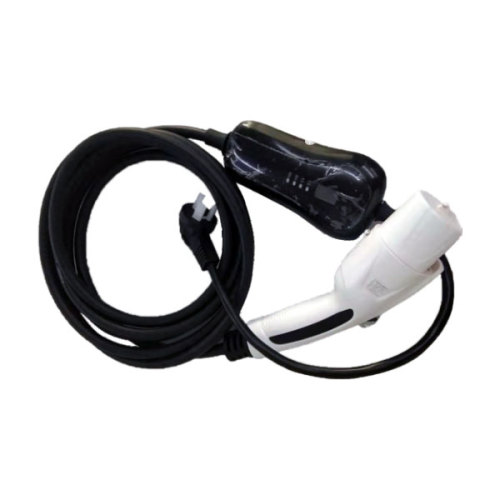

AC 3.5KW Portable Chargring Pile

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C,T/T,D/P,Paypal
Incoterm:	FOB,CFR,CIF,EXW,FCA,CPT,CIP

Product Description

3 5kw7kw X Jpg

AC 3.5KW Portable Chargring Pile Applicable Scenes:

This type of charging pile is mainly used for home charging, which can be charged slowly for a long time without network and billing function

AC 3.5KW Portable Chargring Pile Technical Data

Detailed specifications	Product model number	ENC-ACX003A SAE-ACX003A
	Input the voltage	110~220Vac ± 15%
	Input the frequency	50 ± 3Hz
	Output voltage	110~220Vac ± 15%
	Maximum output current	16A
	Cable length	5m(Defaut)
	Measurement accuracy	Level 1
Electrical indicators	Flow limit protection value	≥110%
	Pressure stabilization accuracy	/
	Current current accuracy	/
	Tripple coefficient	/
	Efficiency	/
	Power factor	/
	Harmonic content is THD	/
Functional design	Human-machine interface	LED display
	Charging meathod	Automatic full
	Charging mode	Plug and play
Safety design	Safety regulation standards	IEC62196/EN61000/SAE J1772,etc
Safety design	Safety function	Overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, Low temperature protection, lightning protection, emergency stop protection, electric leakage protection
Environmental indicators	Operating temperature	-25℃~+55℃
	Working humidity	5%~95%(Non-condensing)
	Working altitude	≤ 2000m
	Protection level	IP54
	Cooling mode	Natural cooling
	Noise control	≤ 60dB
	MTBF	At about 100,000 H

AC 3.5KW Portable Chargring Pile Features:

1、Light weight and portable;
2、Support wide voltage range input: 110~240Vac, 50/60Hz;
3、The charging current can be adjusted;
4、With over current, under current, over voltage, under voltage, leakage, surge protection and other safety functions;
5、Support IEC62196 mode 3, type 2 / Type 1 connector.
