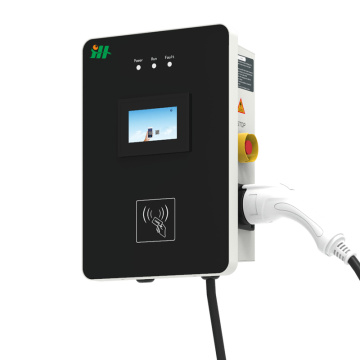

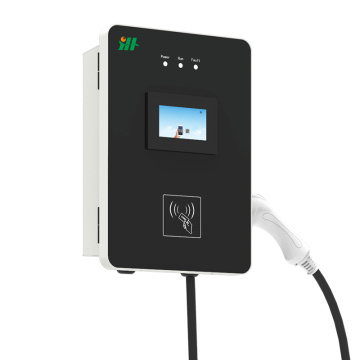

7kw Energy Vehicle AC charging pile
- Min. Order:
- 1 Platform
- Min. Order:
- 1 Platform
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,Paypal,Others |
|---|---|
| Incoterm: | FOB,CFR,CIF |
They are suitable for occasions such as private villas, residential areas, commercial office buildingsurban complex parking lots or urban public charging stations that can charge slowlyforalong time;or applied for 4S stores of new energy vehicles, workshop debuggingareas,road rescue of new energy vehicles and other occasions that require frequent change of charging station sites or temporary power supply.
Features;
Delicate appearance，simple operation,convenient installation;
High efficiency, reliable and stable performance;

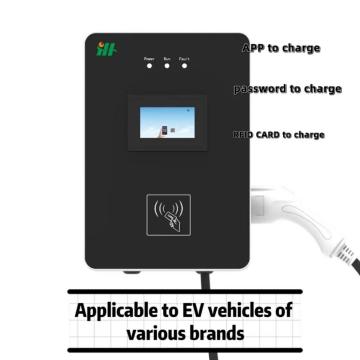

Friendly interaction interface，4.3-inch color touch screen;
Support multiple modes of charging,operation management and payment;
Support Ethernet or wireless telecommunication;
Support RFID Card/OCPP1.6(optional);
Support Type-2connector(or Socket)optional; Overloadintegrated Protection;
Supportonline data upgrade.
Technical Date
|
S. NO. |
Parameters |
Requirements |
||
|
General Requirements |
||||
|
1 |
EV charger Type |
AC |
||
|
2 |
Charger Capacity |
7KW(Plug and play) |
7KW |
11KW |
|
3 |
Model No. |
ENC-ACL007A / ENC-ACB007A |
ENC-ACL007A / ENC-ACB007A |
ENC-ACL011A / ENC-ACB011A |
|
4 |
Mounting |

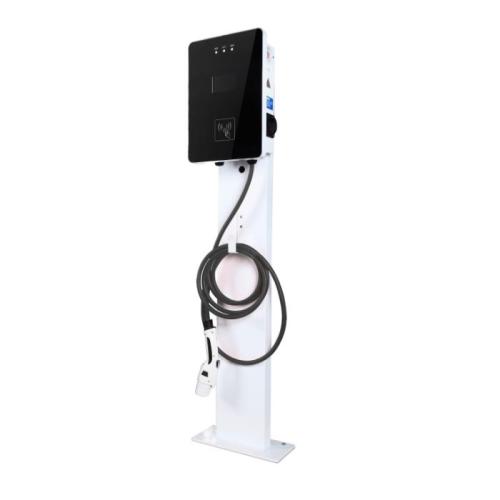

Column type/ Wall-mounted |
||
|
Input Requirements |
||||
|
5 |
AC Supply System |
Single-Phase, 3 Wire AC system |
Three-Phase, 5 Wire AC system |
|
|
6 |
Nominal Input voltage |
220V ± 15% |
380V ± 15% |
|
|
7 |
Input frequency |
50Hz, ±1.5Hz / 60Hz, ±1.5Hz |
||
|
Environmental Requirements |
||||
|
8 |
Ambient Temperature Range |
-25 to 55°C |
||
|
9 |
Ambient Humidity |
5 to 95% |
||
|
10 |
Storage temperature |
-40 to 70°C |
||
|
Mechanical Requirements |
||||
|
11 |
IP Ratings |
IP 54 |
||
|
12 |
Cooling |
Air cooled |
||
|
Output Requirements |
||||
|
13 |
Number of outputs |
1 |
||
|
14 |
Type of each output |
220V ± 15% single phase, 32Amp |
380V ± 15% three phase, 16Amp |
|
|
15 |
Output Current |
32 Amp |
16 Amp |
|
|
16 |
Output Connector Compatibility |
IEC-61851-22, IEC 62196-2 Mode 2, Type 2 |
||
|
User Interface & Display Requirements |
||||
|
17 |
Display & touch-screen size |
/ |
4.3 inches |
4.3 inches |
|
18 |
User Authentication |
Mobile application or User interface / QR Code/RFID Card /Password Login |
||
|
19 |
Metering Information |
Consumption Units |
||
|
Communication Requirements |
||||
|
20 |
Communication between EVSE and Central Server |
/ |
OCPP 1.6 protocol (optional) |
OCPP 1.6 protocol (optional) |
|
21 |
Interface between charger and CMS |
Ethernet and GPRS Modem |
||
|
Protection & Safety Requirements |
||||
|
22 |
Safety Parameters |
Over current, under voltage, Residual current, Surge protection, leakage protection, Short circuit, Over temperature, etc. |
||
|
23 |
Power failure |
If there is a power failure, user is indicated about this. |
||
Customer question and answer:
Q1: Are you a factory or a trading company?
A: We are factories
Q2: Where is your factory? How do I get there?
A: Our factory is located in Shenzhen, Guangdong Province, China.
You can fly directly to Shenzhen Airport.
We warmly welcome customers at home and abroad to visit us!
Question 3: What is the payment terms?
A: We accept T / T, L / C, Western Union, Money Gram and so on.
Q4: What is the mode of transportation?
A: At sea or in the air. According to customer requirements.
Q5: How is your delivery time?
A: Generally speaking, it takes 45-60 days. The exact delivery time depends on the number and quantity of your order.
Q6: How is your after-sales service?
A: We will inspect each product before delivery according to international quality standards.
Q7: Can you provide samples? Is the sample free?
A: Yes, we can provide samples. Typically, we offer 1-3 free samples for testing or quality checks. But you have to pay the shipping cost. If you need a lot of items. Or if each item requires more quantity, we will charge a sample fee.
Q8: Can you customize products and custom packaging?
A: Yes, all products can be customized according to customer requirements.
For custom packaging, we can place logos or other information on the box.
Q9: Can I become an agent/distributor of OWP products?
A: Welcome! But please tell me your country first, we will check it out, then talk about this issue. If you want any other type of collaboration. Please do not hesitate to contact us.
Then，Last but not least，
Looking for ideal Split DC Sweep the Card EV Charger Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the DC Fast Split EV Charger are quality guaranteed. We are China Origin Factory of Car Split Fast EV Charger. If you have any question, please feel free to contact us.
