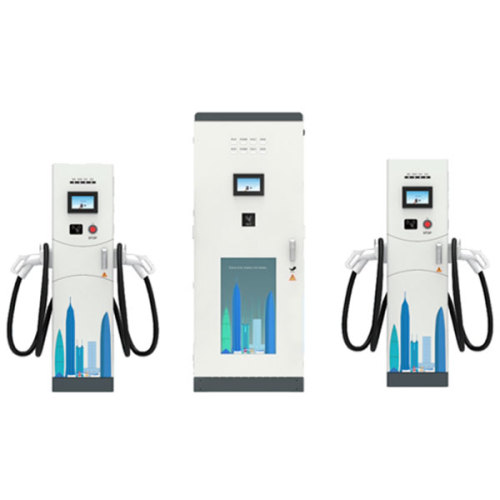

240KW Sequential Charging station
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,D/P,Paypal |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,CIP |
240KW Sequential Charging station Applicable Scenes:
They are suitable for occasions such as city special charging stations that provide charging for bus, taxi, public service vehicles, sanitation vehicles,logistics vehicles, etc.; city public charging stations that provide charging for private cars, commuter, bus; intercity highway charging stations and other occasions that need special DC fast charging.
240KW Sequential Charging station Technical Data
|
Product model |
ENC-DCF240D/SAE-DCF240D/JAN-DCF240D |
|
|
specifications |
Charger Capacity |
240KW |
|
Power cabinet |
Display & touch-screen size |
7 inches |
|
Mounting |
Ground mounted |
|
|
Nominal Input voltage |
AC380V±15% |
|
|
Input frequency |
45~65Hz |
|
|
Type of each output |
200-750V |
|
|
Output Current |
Ordinary power: 0-396A
Constant power: 0-600A
|
|
|
Charging terminal |
Display & touch-screen size |
7 inches |
|
Nominal Input voltage |
AC220V±20% |
|
|
Input frequency |
45~65Hz |
|
|
Input DC voltage |
200-750VDC |
|
|
Output DC voltage |
200-750VDC |
|
|
Single gun output maximum
current
|
250A |
|
|
Connector minal |
2 | |
|
Total Connectors |
4 | |
|
Electrical indicators |
Current Limit Protection Value |
≥110% |
|
Steady pressure precision |
≤±0.5% |
|
|
Steady flow accuracy |
≤±1% |
|
|
Power Factor |
≥0.99(50% load above) |
|
|
Functional design |
User Authentication |
Mobile application or User interface / QR Code/RFID Card
/Password Login
|
|
Metering Information |
Consumption Units |
|
|
Communication between EVSE
and Central Server
|
OCPP1.6J protocol (optional) |
|
|
Charger and CMS |
Ethernet and GPRS Modem |
|
|
Safety Requirements |
Safety Parameters |
Over current, under voltage, Residual current, Surge
protection, leakage protection, Short circuit, Over
temperature, etc.
|
|
Power failure |
If there is a power failure, user is indicated about this. |
|
|
Environmental
Requirements
|
Ambient Temperature |
-25°C ~+55°C |
|
Ambient Humidity |
5%~95% |
|
|
IP Ratings |
IP54 |
|
|
Cooling |
Forced air cooled |
|
240KW Sequential Charging station Features:
1、Simple operation, convenient installation;
2、High efficiency, reliable and stable performance;
3、Friendly interaction interface, 7inch color touch screen;
4、Support multiple modes of charging, operation management and payment;
5、Support 3G/4G, Ethernet or wireless telecommunication;
6、Support RFID Card/OCPP 1.6J (optional);
7、Support CCS-2/CCS-1CHAdeMO connector(or Socket)optional;
8、Overload integrated Protection;
9、Support online data upgrade.
