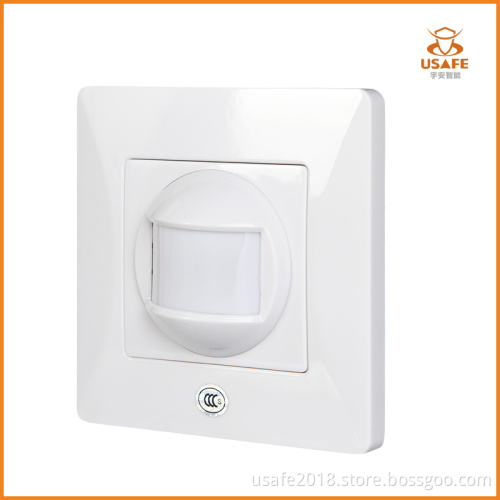

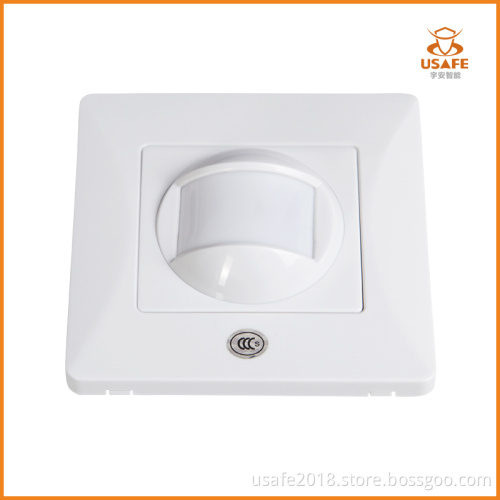

2019 New Design, Wall Mounted Wired PIR Detector for Home Security
-
USD4≥1000 Piece/Pieces
- Payment Type:
- T/T
- Incoterm:
- EXW
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 100000pcs/month |
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | CE,ISO9001 |
| HS Code: | 8531100000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |
Product Description
Product Description
Features
• 86*86 installation box
• Auto-temperature compensation
• LED ON & OFF optional
• Anti white light function
• Detecting distance optional (far, middle, near)
• Adopted SMT, high EMI, RFI immunity
Specifications
| Input Voltage | DC 9-16V |
| Operating Current | ≤20mA (DC12V) |
| Working Temperature | -10°C- +55°C |
| Installation Method | Wall or ceiling mounted |
| Installation Height | 3.6m below |
| Detecting Angle | 15° |
| Detecting Distance | 6m |
| Pluse Count | 1st Grade(1P), 2nd Grade(2P), 3rd Grade(3P) optional |
| Relay Output | N.C contact capacity: 30VDC, 100mA |
| Dimension | 86*86*40mm |
