Skycut vinyl cutting plotter C16
- Payment Type:
- L/C, T/T, D/P, Money Gram, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 15 Days
- Transportation:
- Ocean, Land, Air
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 2000 units per month |
| Payment Type: | L/C,T/T,D/P,Money Gram,Western Union |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air |
Product Description
Product Description
Large touch screen menu
1. High sensitivity
2. Simple use, straightforward operation
3. With multi-languages
4. Powerful function like:
repeat-repeat cut last job
Array-freely set to cut many lines and many columns, and free set distance between each copy.
Camera for auto contour cutting
Skycut patent feature-build in real camera for auto print&cut. High-accuracy, fast speed, and capable for any color materials and marks, like:
1. High reflective materials
2. Various color materials
3. Transparent materials
4. Any color marks
Multi-interface
USB cable(real USB,no need to install driver)
U disk (support both normal cutting and contour cutting)
Wifi(optional)
Fully Adjustable Pinch Feed Assembly
The pinch wheels can be individually arranged in more convenient location, without cutting mat, it can cut materials ranging from 20mm(0.8") to 260mm(10"), up to 24" on the larger model
Metal Body
1. High sensitivity
2. Simple use, straightforward operation
3. With multi-languages
4. Powerful function like:
repeat-repeat cut last job
Array-freely set to cut many lines and many columns, and free set distance between each copy.
Camera for auto contour cutting
Skycut patent feature-build in real camera for auto print&cut. High-accuracy, fast speed, and capable for any color materials and marks, like:
1. High reflective materials
2. Various color materials
3. Transparent materials
4. Any color marks
Multi-interface
USB cable(real USB,no need to install driver)
U disk (support both normal cutting and contour cutting)
Wifi(optional)
Fully Adjustable Pinch Feed Assembly
The pinch wheels can be individually arranged in more convenient location, without cutting mat, it can cut materials ranging from 20mm(0.8") to 260mm(10"), up to 24" on the larger model
Metal Body

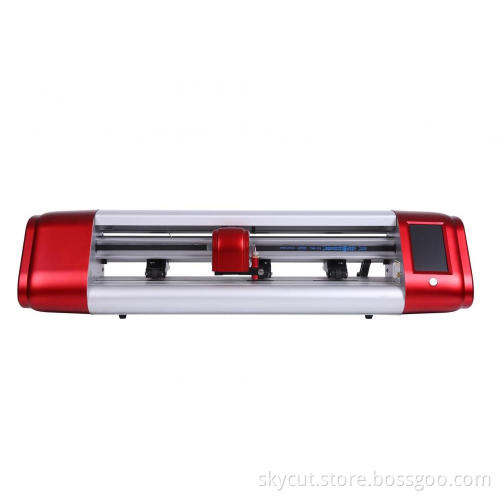

Skycut model C vinyl cutter has cute body, but hasindustrial professional design with metal body. Super quiet when working like a servo.Stronger, stable and higher accuracy. It has max 750g cutting force, easily cut many materials including vinyl, cardstock, HTV, fabric, EVA foam and more.
| Specification | |
| Model | SKYCUT C16 |
| Max media width | 500mm |
| Max cutting width | 590mm |
| Indicate dimensions | 730*160*180mm |
| Packing size | 770*320*280mm |
| Packing gross weight | 11kg |
| Max force | 750g |
| dB values | 65 |
| Number of heads | 1 |
| Floor stand | No |
| Auto contour cut | camera |
| corelDRAW directly | yes |
| Power supply, V/Hz | 24V 1.5A |
| Laser engrave option | Yes |
| Scratch engrave | Yes |
| Motor | stepper |
| Processor memory | 128MB |
| Cutting precision | +/- 0.01mm |
| Repeat precision | 0.082 mm |
| Max moving speed | 700mm/s |
| Max cutting speed | 600mm/s |
| Connector interface | USB flash / WIFI(option) / USB cable |
| Power | < 100W |
| Working environment | +5°C - +35°C |
