Engraving Processing 55mm 60mm 70mm POM Sheet
  • Engraving Processing 55mm 60mm 70mm POM Sheet
  • Engraving Processing 55mm 60mm 70mm POM Sheet
  • Engraving Processing 55mm 60mm 70mm POM Sheet
  • Engraving Processing 55mm 60mm 70mm POM Sheet
  • Engraving Processing 55mm 60mm 70mm POM Sheet
  • Engraving Processing 55mm 60mm 70mm POM Sheet
Engraving Processing 55mm 60mm 70mm POM Sheet
Engraving Processing 55mm 60mm 70mm POM Sheet
Engraving Processing 55mm 60mm 70mm POM Sheet
Engraving Processing 55mm 60mm 70mm POM Sheet
Engraving Processing 55mm 60mm 70mm POM Sheet
Engraving Processing 55mm 60mm 70mm POM Sheet

Engraving Processing 55mm 60mm 70mm POM Sheet

Min. Order:
100 Kilogram
Min. Order:
100 Kilogram
Transportation:
Ocean, Air
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 3000 Ton/month
Supply Ability: 3000 Ton/month
Payment Type: L/C,T/T,Western Union
Incoterm: FOB,CFR,CIF,EXW
Certificate: SGS/TUV/ISO:2015
Transportation: Ocean,Air
Port: Shenzhen
Product Description
Product Description

Engraving Processing 55mm 60mm 70mm POM Sheet



It is resistant to organic solvents, does not dissolve at room temperature, and has good low temperature performance. The use temperature is -40-90°C.

Excellent abrasion resistance and creep resistance, high mechanical strength, high rigidity and hardness.

Good sliding performance, no water absorption, high mechanical strength, and excellent processing performance.


Extruded Pom Sheet Main Properties:

Delrin Sheet has good hardness and rigidity, high resistance to creep and stress relaxation, good wear resistance, self-lubricating, and fatigue, which cannot be compared with other engineering plastics.


Application:

Delrin Pom Sheet is widely used in the manufacture of various sliding rotating machines, precision parts, gears, bearings and the like. The use of the industry is in the fields of automobiles, electronics, clothing, medical, machinery, sports equipment and so on.

pom rod


Pom Material Sheet Specification:

Item name

POM-C Sheet

Type:

extruded

Thickness:

0.5-150mm

Size:

1000*2000 / 610*1220mm

Density:

1.41  g/cm³

Color:

White, black

Brand name:

AHD

Material:

100% virgin material

Sample:

FREE

Acid resistance:

YES

Food Contact

YES


Physical Datasheet:

Item

POM (C) Sheet

Color:

White, Black

Proportion:

1.41g/cm³

Heat resistance (continuous):

115

Heat resistance (short-term):

140

Melting point:

165

Linear thermal expansion coefficient (average 23~100℃):

110×10-6 m/(m.k)

Average 23--150

125×10-6 m/(m.k)

Flammability(UI94):

HB

Tensile modulus of elasticity:

3100MPa

Dipping into water at 23 for 24h

20%

Dipping into water at 23

0.85%

Bending tensile stress/ Tensile stress off shock

68/- Mpa

Breaking tensile strain

˃35%

Compressive stress of normal strain-1%/2%:

19/35 MPa

Pendulum gap impact test

7 KJ/m2

Friction coefficient:

0.32

Rockwell hardness:

M84

Dielectric strength:

20 kv/mm

Volume resistance:

10 14Ω×cm

Surface resistance:

10 13Ω

Relative dielectric constant-100HZ/1MHz:

3.8/3.8

Critical tracking index(CTI)

600

Bonding capacity:

+

Food contact:

+

Acid resistance:

+

Alkali resistance

+

Carbonated water resistance:

+

Aromatic compound resistance:

+

Ketone resistance:

+

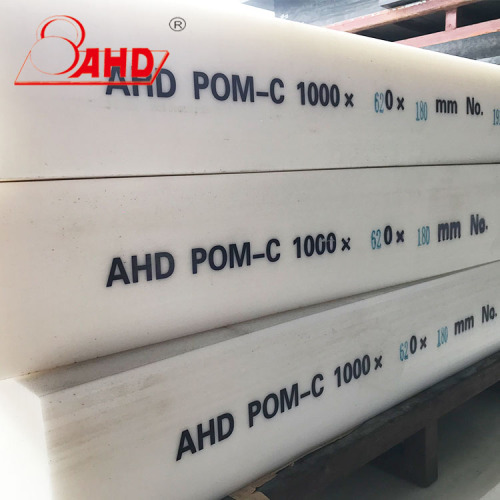

POM SHEET Goods Photos:

200mm Pom Sheet200mm White Pom Sheet200mm Black Pom


Nylon


Packing:

Iron pallets on bottom, wrapped with tarpaulin, the surface is covered with PE film.


Exhibition:

Anheda group is invited to participate in domestic and international trade exhibitions every year as the most representative exhibitor,has widely attracted the attention of customers from all over the world.It making anheda group play more loudly, spread farther and have wider influence.

Abs Sheet


About us:

Anheda Plastics Group is located in the Shenzhen Special Economic Zone, adjacent to Hong Kong, with convenient transportation by sea, land and air.

Since its establishment, the company has put quality first, and adheres to the tenet of [Science and Technology, Cultivation of More Talents, Technology Development and Growth, and Innovation of Technical Talents". Our company is growing and developing step by step, and its economic strength is constantly improving, and its competitive advantage continues to stand out. We always abide by the business philosophy of "Quality First, Customer First", and customer satisfaction is our driving force.

  AHD f-f


FAQ:

Q1: Are you a factory or trade company?

A1: we are a manufacturter for semi-finished engineering plastic sheet & rod like "

Polypropylene Plastic Sheet,Nylon Sheet,Pa6 Rod,Abs Plastic Sheet,Abs Plastic Sheet ,PP Rod and Sheet, POM Sheet, PC Sheet"etc since 1994.


Q2: Is your sample free?

A2:Yes, our samples are free, but the shipping cost is paid by the buyer.


Q3: What about the MOQ ?

A3:In addition to the sample, the minimum order quantity for a regular size product is 100kgs.


Q4: What about the packing ?

A4:  As per factory's exported standard, usually use steel pallets.


Q5: What about the payment term ?

A5:we accept payment by L/C , T/T, usually 30% deposit is requested before production. 50% deposit is request for customzied items.


Q6: What's your delivery time?

A6:For samples: within 1-3 working days; For orders: within 7-30 working days.
