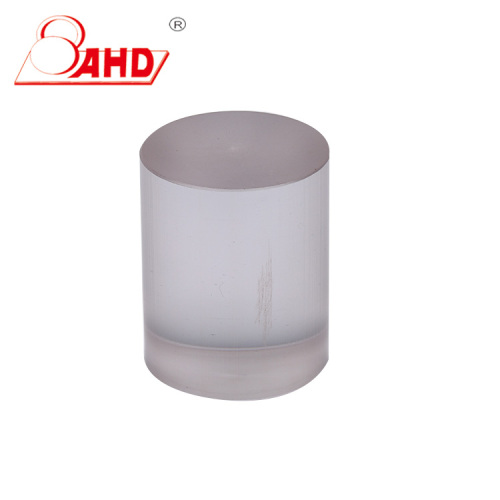

DIA15-300mm Transparent Solid PC Polycarbonate Rod
- Min. Order:
- 100 Kilogram
- Min. Order:
- 100 Kilogram
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | made in China |
---|---|
Productivity: | 3000tons/month |
Supply Ability: | 3000tons/month |
Payment Type: | L/C,T/T,Paypal |
Incoterm: | FOB,CFR,CIF,EXW,DDU |
Certificate: | SGS/ TUV |
Transportation: | Ocean,Land,Air,Express,Others |
Port: | Shenzhen,Guangzhou |
Polycarbonate, an amorphous-form, odorless, nonpoisonous and high transparent colorless or yellowish thermoplastic engineering plastic, is honored as transparent metal. AHD is the first to produce ultra-thick PC plate(with a thickness up 200mm). rod DIA15--300mm in China, who supplies a gap in this field. With imported equipment and material plus advanced technology of residual stress relieving, such plate has so many advantages such as good flatness, high transparent , non-deforming, bubble-free and uniform in color.
Main Properties:
- Strong mechanical strength
- Good creep resistance
- High impact strength even under lower temperatures
- Strength retention within larger temperature scope
- Energy ray resistance
- Good electric insulation performance
- Good dimensional stability,
- Translucent,
- Physiological inertia (suitable to contact with food)
Application:
It is widely applied in machinery, electronics, auto, construction, living goods and hand paddle model and it is also fast expanding to hi-tech fields such as aeronautics, astronautics, electronic digital computer, disc and optical fiber.
Specification:
Item name | PC ( Polycarbonate) Rod |
Type: | extruded |
Diameter: | Ø15---300mm |
Length: | 1000mm |
Density: | 1.2 g/cm³ |
Color: | Translucent, |
Brand name: | AHD |
Material: | 100% virgin material |
Sample: | FREE |
Acid resistance: | YES |
Food Contact | YES |
Physical Datasheet:
Item | PC ( Polycarbonate) |
Type | extruded |
Length | 1M or 2M |
Diameter | 15--300mm |
Color | Transparency / Black |
Proportion | 1.2g/cm³ |
Heat resistance (continuous) | 125℃ |
Heat resistance (short-term) | 135℃ |
Melting point | _ |
Glass transition temperature | 150℃ |
Linear thermal expansion coefficient (average 23~100℃) |
65×10-6m/(m.k) |
Average 23--150℃ | 65×10-6m/(m.k) |
Flammability(UI94) | HB |
Tensile modulus of elasticity | 2400MPa |
Dipping into water at 23℃ for 24h | 0.13 |
Dipping into water at 23℃ | 0.35 |
Bending tensile stress/ Tensile stress off shock | 70/- Mpa |
Breaking tensile strain | >50% |
Compressive stress of normal strain-1%/2% | 18/35 MPa |
Pendulum gap impact test | 9 KJ/m2 |
Friction coefficient | 0.55 |
Rockwell hardness | M75 |
Dielectric strength | 28 kv/mm |
Volume resistance | ≥10 15Ω×cm |
Surface resistance | ≥10 15Ω |
Relative dielectric constant-100HZ/1MHz | 3/3 |
Critical tracking index(CTI) | 600 |
Bonding capacity | + |
Food contact | + |
Acid resistance | + |
Alkali resistance | - |
Carbonated water resistance | 0 |
Aromatic compound resistance | - |
Ketone resistance | - |
About us:
Established in Shenzhen in 1994, our company is a comprehensive company that is engaged in the R&D, production and distribution of semi-finished engineering plastic in China, including POM, PC, ABS, PP, PE, PEI, PA6 and PU sheet & rod. Our company has more than 250 plastic production lines of imported manufacturing equipment, and covers an area of 25000 square meters. With over 200 employees (a number of them are senior engineers), together with many years of experience and customers' feedback, we have been a leader in plastic industry field for the constant perfection of our service network, technical level and product scope.
We've obtained independent import and export rights and established various branches all over the country. Our products sell well in Europe, America and Southeast Asia. The proportion of export has increased over years. Shanghai is a larger city in China. Therefore, we moved our international department to Shanghai from Shenzhen for better communication with our customers in 2010.
We can meet customers' requirements, and we can find out the best solution for each application. Besides, we can also help our customers to maintain the competitive position and have every customer obtain benefits from the best products.
FAQ:
Q1: Are you a manufacturer?
A1: Yes, AHD the the semi-finished engineering plastic products manufacturer in Shenzhen China since 1994s. Our main goods include [POM sheet and rod , HDPE sheet and rod, PP sheet and rod , PU sheet and rod , PA6 sheet and rod , ABS sheet and rod , POM+GFsheet and rod , ESD POM sheet and rod, PA6+GF sheet and rod etc
Q2:How do I know your quality?
A2: Free sample will be able to verify our quality.
Q3: What`s payment?
A3: T/T,L/C,Western Union etc. About the payment details please feel free to contact free to contact us.Thank you!
Q4:Can you supply sample?
A4:Yes,we can supply you free small samples,but air cost will be paid by customers.
Q5:How many days will the samples be finished?And how about the mass production?
A5: Generally the samples will be sent immediately by the air express in 1--3 days, the leading time mass production is depended on the stock status and sizes
