Thickness 2-100mm Black/White/Blue Color PA6 Sheets
- Min. Order:
- 100 Kilogram
- Min. Order:
- 100 Kilogram
- Transportation:
- Ocean
- Port:
- Shenzhen Port, Shekou Port
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,Guangdong(Mainland) |
|---|---|
| Supply Ability: | 2500Ton/Month |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ROHS,SGS Testing Report |
| Transportation: | Ocean |
| Port: | Shenzhen Port,Shekou Port |
Overview
Quick Details
Place of Origin:Guangdong, China (Mainland)
Raw Material:100% PA6 virgin material
Product Name: Nylon Sheet
Certificate:SGS;TUV
Sample:Free
MOQ:100KGS
Packing:PE Film Wraping
Product Description
Nylon Plate, Chinese name polyamide, English name Polyamide (referred to as Pa6 Sheet), is a general term for thermoplastic resin containing repeating amide group -NHCO- in the main chain of the molecule.Polyamide sheet is one of the earliest engineering thermoplastics with high tensile strength, impact toughness, good oil resistance, fatigue resistance and self-lub.

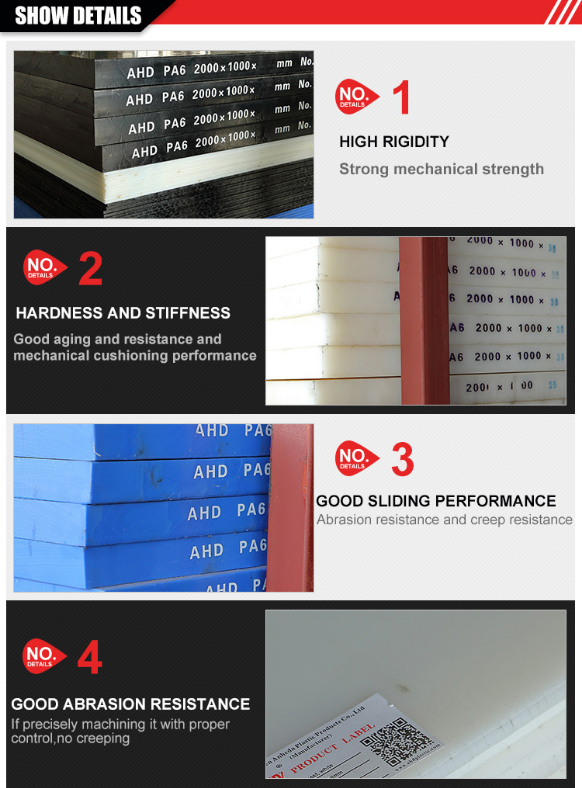

Main Ferture
1.Low resistivity,
2.Balanced resistivity,
3.Constant resistivity
4.High mechanical strength,
5.Superior wear resistance
6.Chemical resistance.
Physical Datasheet
|
Item |
Nylon 6 Sheet
|
|
Color
|
White,black, blue
|
|
Proportion
|
1.15g/cm³
|
|
Heat resistance (continuous)
|
85℃
|
|
Heat resistance (short-term)
|
160℃
|
|
Melting point
|
220℃
|
|
Linear thermal expansion coefficient (average 23~100℃)
|
90×10-6 m/(m.k)
|
|
Average 23--150℃
|
105×10-6 m/(m.k)
|
|
Flammability(UI94)
|
HB
|
|
Tensile modulus of elasticity
|
3250MPa
|
|
Dipping into water at 23℃ for 24h
|
86%
|
|
Dipping into water at 23℃
|
9%
|
|
Bending tensile stress/ Tensile stress off shock
|
76/- Mpa
|
|
Breaking tensile strain
|
>50%
|
|
Compressive stress of normal strain-1%/2%
|
24/46 MPa
|
|
Pendulum gap impact test
|
5.5 KJ/m2
|
|
Rockwell hardness
|
M85
|
|
Dielectric strength
|
25 kv/mm
|
|
Volume resistance
|
10 14Ω×cm
|
|
Surface resistance
|
10 13Ω
|
|
Relative dielectric constant-100HZ/1MHz
|
3.9/3.3
|
|
Critical tracking index(CTI)
|
600
|
|
Bonding capacity
|
+
|
|
Food contact
|
+
|
|
Acid resistance
|
-
|
|
Alkali resistance
|
+
|
|
Carbonated water resistance
|
+/0
|
|
Aromatic compound resistance
|
+/0
|
|
Ketone resistance
|
+
|
Nylon 6 Sheet is widely used in IC parts, transport magazines, storage magazines, trays, straight balls, rollers, containers, pulleys, guide wheels, rollers, guides, parts for solvent treatment, parts for precision measuring devices, low frequency Electromagnetic wave sticker.
Goods Photo
Company Information
Our company has been established for more than 25 years and has the experience of producing a series of plastic semi-finished products. It introduces the most advanced imported equipment and combines the most advanced technology at home and abroad. The products are of high quality and low price, and the supply capacity is guaranteed.
Our Exhibition
AHD related products

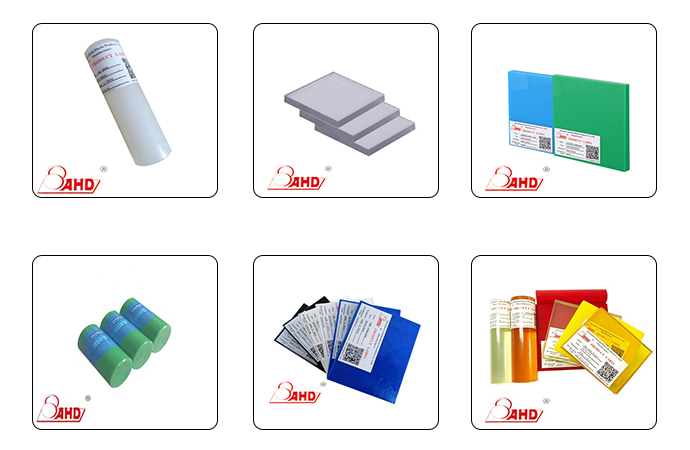

Anheda produces a range of plastic products:PA6/PC/PU/POM/ABS/HDPE/PP sheet and rod;there are also a series of flame retardant / antistatic and other plastic products.
