0-10V Controller With LCD Touchscreen Easily Remote View And Modify The Current Settings For Each Channel

0-10V Controller

Description

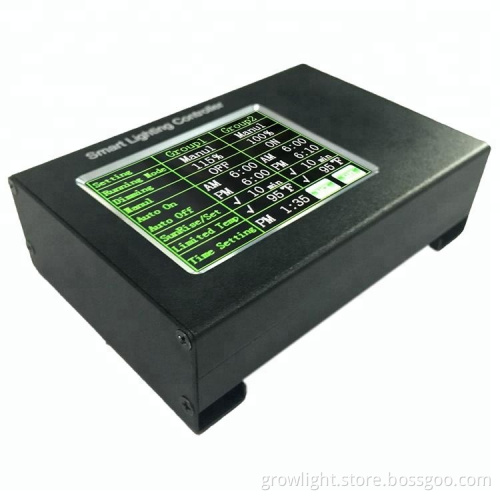

The Smart Lighting Controller is designed to control two lighting groups in a greenhouse. You can control up to 60 lights per group. The controller uses 0-10V adjustable DC voltage to control ballast output power and switch on/off the ballast. The controller operates on a 24-hour time cycle. The controller also has the ability to simulate sunrise and sunset cycle from 1060 minutes. Each of the two-lighting group channels has a room overheat protection function that can be set as needed. You can use the LCD touchscreen to easily view and modify the current settings for each channel. Moreover, the Smart Lighting Controller is portable, easily operated and installed.

0-10V control modules for all NCCS ready ballasts.

The 0-10V module allows all Sznumber ballasts to run on any controller using 0-10V protocol.
0-10V Module uses the following protocol:
Voltages for ON is 5V or more than 5V. OFF is 1V-0V

Voltage range for dimming is from 100%-50% is 10V-5V.

Replaces timers and contactors

You can plug your ballasts directly into mains outlets. You do not need any timers or contactor boxes any more: the ballasts are in stand-by mode and wake up when they get the signal from the controller. This means that you don't have any inrush any more when you switch on your ballasts. Just set the on/off time on the controller and you are good to go.

Dimming and boosting

Once you have connected your ballasts to the controller and set the on/off time you can set the output power centrally by the push of a few buttons. You can choose to have the output power displayed as a percentage or in actual output wattage of your ballasts. We even offer you a sunrise/sunset time setting in which the lamps ramp up or down at the start and end of the cycle. Autodim and safety shutdown based on room temperature. The Master controller is equipped with temperature sensors. Though we do not intend for you to use the Master controller as a climate controller, it can help you save your crop when temperatures in your room rise beyond your climate control capabilities. At a set temperature (normally a few degrees above your set ideal climate temperature) the Master controller will automatically dim your lamps, to prevent crop damage. In case of a complete ventilation failure or other calamity, when temperatures rise even more, the controller shuts down all connected equipment and activates the alarm contact.
