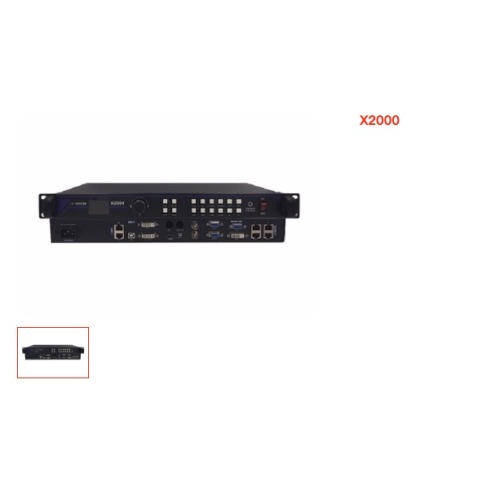

Video image processor of led display screen X2000
Product Feature:Video image processor of led display screen X2000
1.Summary:
LINSN
X2000 supports various LED screens in the market, using mature solution, high
end video ICs, and 12bit color processing to show colorful and clear image.
Using world`s leading image process technology, Faroudja,( 57139327,DCDi to eliminate jagged edges;
TNR-reducing noise technology) One processor supports 2.62 million pixels;
supports customizing resolution, fade-in/out, picture-in-picture (position and
size can be set as your requirements) and capturing parts of full-screen image
function.
Please note that X2000 only works with Linsn
receiving card.
2. Functions and features:
1. 1) X2000 has various interfaces: 2 CVBS ports,2 VGA ports,
1 HDMI port,1 DVI por(t DVI LOOP); SDI(with SDI loop,
optional)
2. 2) 2.0 inch LCD menu display;
3. 3) Supports PIP, fade in/out function and other effect;
4. 4) Supports 16bit greyscale display and output for monitor;
5. 5) Supports customizing resolution, like 3840(max width) x 340,
512 x 1920 (max height), 1280x1024, and 1440x900; 6) Supports cascade.
|
Product Image |
|
Product Parameters |
No.
Interface
Features
1
LCD
For display menu and
operation
2
Control Knob
1.Press down to enter
menu 2. Rotate to select or set up
3
Return
Exit or return
4
Mode
For mode selection
5
PIP
Quick setup for PIP
6
Scale
Scaling button
7
Video source input
selections
There are 8 buttons in
this section:
time
8
None
9
FN
Reserved
10
TEST
For testing, output
R,G,B,W grayscale colorbar
11
Take
Output confirm. Press
down Take button to switch the video source output
12
Power
Power switch
Control
No
Description
1
UART, for cascade
2
USB, for connecting PC
to use LEDSet to do the setup and upgrade
Input
No
Connector
Description
3
DVI
DVI loop out
4
DVI
VESA standard,
supports up to 1920*1080@60Hz
5
HDMI
HDMI1.3 standard,
supports HDCP1.4 and up to 1920*1080@60Hz
6
SDI
SDI input, optional
7
AUDIO
Audio input
8
SDI LOOP
SDI loop out
9
CVBS
PAL/NTSC standard,
dual channel inputs
10
VGA
Supports up to
1920*1080@60Hz, dual channel inputs
11
DVI Monitor
DVI preview output for
connecting monitor
12
VGA Monitor
VGA preview output for
connecting monitor
Output
No
Connector
Description
13
Network port
4 network ports for
connecting Linsn receivers
5. Dimensions
6. Parameters
Power
AC 100-240V 50/60HZ
Power consumption
19W
Working Temperature
-20°C-60°C
Weight
3.2KG
END
(1)HDMI: HDMI signal input selection
(2)DVI: DVI signal input selection
(3)VGA1\VGA2: VGA input selection, only one VGA
can be enabled at a
(4)CVBS1\CVBS2: both CVBS channels can be used
simultaneously (5)Undefined: SDI One of them is used as SDI
signal input
|
