P3.9 P5.2 P6.25 P8.9 LED Floor Tile Screen
- Payment Type:
- L/C, T/T, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF
- Delivery Time:
- 15-30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Hongkong, China
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 1500 square meter/month |
| Supply Ability: | 1000 square meter/month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CCC,CE,UL,RoHS,FCC |
| HS Code: | 8528591090 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Hongkong,China |
P3.9 P5.2 P6.25 P8.9 LED Floor Tile Screen
Product Feature: P3.9 P5.2 P6.25 P8.9 LED Floor Tile Screen
- The PC cover is made of anti-slip and the bearing weight is above 2T.
- LED Floor Tile Screen with High-end LED screen special waterproof silica gel
- Realization of human-computer interaction experience (abbreviation: interactive effect).

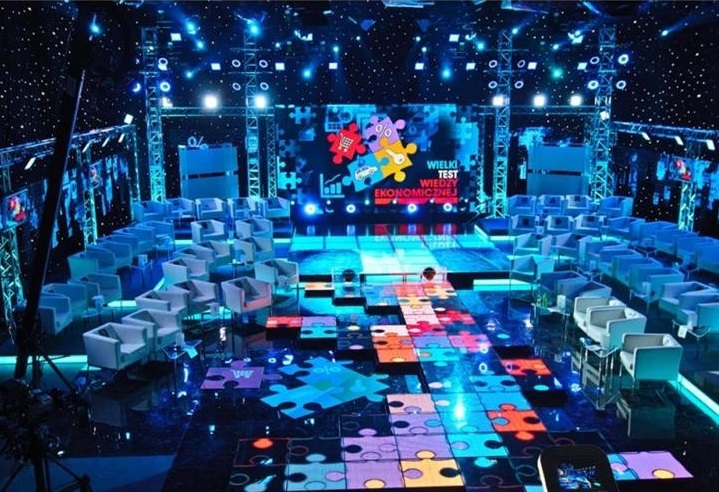

- The special effect of floor tile screen in the stage performance has been used fully and vividly, creating an audio-visual feast that is magnificent and modern.
- LED floor brick screen adopts constant current drive chip and input buffer chip. The link LED control system can display video animation, image text information and other characteristics.
- LED floor tile screen module luminescent lamp bead mining SMD1921 three-in-one design, which makes LED floor tile screen indoors or outdoors has a very good effect.
|
|
||
|
Quick Details |
||
| Model No: P3.9P5.2P6.25P8.9 |
|
Tube Chip Color: Full Color |
|
Pixel Pitch: 3.9/5.5/6.25/8.9mm |
|
Pixel Configuration: 1R1G1B |
| LED Chip: SMD1921/1921 /2525/3535 |
|
Input Voltage(V): AC 110V-220V±10% |
|
Driving IC: MBI5124/ICN2053 |
Scanning Mode: 1/16 1/6 1/5 1/4 scan |
|
|
IP Rating: IP65 |
|
Display Function: Advertising LED Display |
| Controller: Novastar / Linsn / Colorlight |
|
Pixel Density: 65536/36864/25600/12400dots/㎡ |
| Maintenance: Front and Rear Service |
|
Working Temperature: -20℃~65℃ |
|
Application: Party, Show |
|
Working Humidity: 10~95%RH |
|
Certification: CE,RoHS,UL,CCC,ETL |
|
Average Power Consumption: 240W/㎡ |
|
|
|
|
| Additional Data |
|
|
| Packaging: Neutral |
|
Productivity: 1500㎡/m |
| Brand: OEM/ODM |
|
Supply Ability: 1000㎡/m |
| HS Code: 8528591090 |
|
Transportation: Ocean, Land, Air |
| Port: Shenzhen |
|
Place of Origin: China |
|
|
|
Product Image |
|
Product Parameters |
|

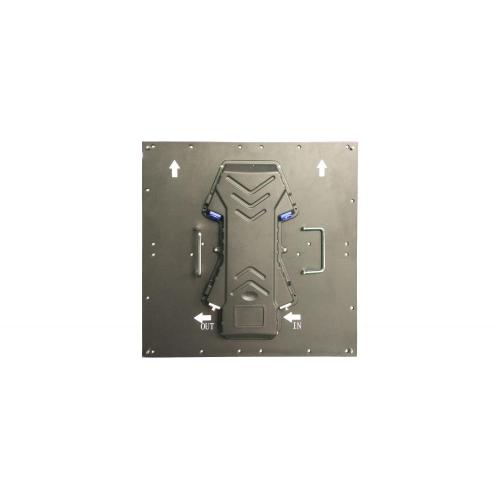

P3.9 P5.2 P6.25 P8.9 LED Floor Tile Screen Unit Module |
Product Name |
P3.9 P5.2 P6.25 P8.9 LED Floor Tile Screen |
|
Pixel Pitch |
3.9/5.2/6.25/8.9mm |
|
|
Module size |
250*250mm |
|
|
Module resolution |
|
|
|
Density |
65536/36864/25600/12544 |
|
|
Diving method |
1/16 1/6 1/5 1/4 scan |
|
|
Led Standard |
SMD1921 /SMD1921/SMD2525/SMD3535 |
|
|
Pixel configuration |
1R1G1B |
|
|
P3.9 P5.2 P6.25 P8.9 LED Floor Tile Screen Cabinet |
Cabinet material |
Aluminum |
|
Cabinet size |
500*1000mm |
|
|
Cabinet weight |
24.1KG |
|
|
P3.9 P5.2 P6.25 P8.9 LED Floor Tile Screen Main parameter |
Best View distance |
>6-80m |
|
Gray scale |
14bits |
|
|
Refresh Rate |
2000HZ |
|
|
protection Level |
IP65 |
|
|
Brightness |
2000cd/m² |
|
|
View Angle |
H:±110 degree V:±110 degree |
|
|
Colors |
＞6M |
|
|
Max Consumption |
600-680W/m² |
|
|
Average Power |
200-220W/m² |
|
|
Working temperature |
- 20℃~+65℃ |
|
|
Driving device |
Constant current |
|
|
Mtbf |
5,000Hours |
|
|
Service maintenance |
Front and Rear access |
|
|
Out-of control point |
＜0.0001 |
|
Package case |
|
Product Advance |
|
Product Suggestion |
|
Our Service |
1. Best price: We can offer you the best competitive price with the same even better quality. Mostly depends on the quantity.
2. Best after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
5. Help you design OEM&ODM or any your customized lightings and put into production.
6. Distributorship are offered for your unique design and some our current models
7.Your sales area, ideas of design and all your private information will be well protected
