Colorlight receiving card 5A-75B Model
Product Feature: Colorlight receiving card
5A-75B Model
|
|
·Integrated HUB75 interface, more convenient with less cost.
·Reduce the plug connectors, and reduce malfunction, lower failure rate.
·Superior display quality: high refresh rate, high grayscale, and high brightness with the conventional chips.
·Perfect performance under lower grayscale status.
·Better detail processing: Partial dark at row, reddish at low gray, shadow problems can be solved.
·Support 14 bits high-precision point-by-point calibration in the Brightness and the chromaticity.
·Support conventional chips, PWM chips and lighting chips.
·Support any scan mode from static to 1/32 scan.
·Support any pumping point and data arbitrary offset to realize various freeform display, spherical display, creative display, etc.
·Support 16 groups of RGB signal output.
·Large load capacity.
·Advanced design, high quality components, rigorous aging test, zero malfunction of final products.
·Wide working voltage range with DC3.3~6V.
·First adopt all components face up configuration to reduce damage.
·Compatible with Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc.
|

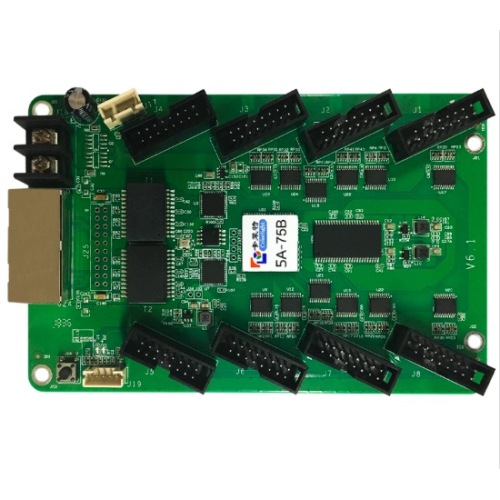

Product Image |
|
Product Parameters |
Gigabit NIC, S series Sender, Z series Sender, C series Sender, etc
Nanosecond synchronization between the card and the card
Static: 64*64, up to 16000Hz
1/8 scan: 128*128, up to 10000Hz
Support conventional chips, PWM chips, lighting chips and other mainstream chips
UTP cable≤140M CAT6 cable≤170M
Optic fiber: Single Mode Fiber Transceiver≤20KM
Multi-Mode Fiber Transceiver ≤550M (Use RP Repeater to extend unlimited)
Gigabit switch, fiber transceiver, optical switches
100g
Control system parameters
Sending device
Control area of every card
Full-color: 256*256 Pixels, for special applications the column can be extended to 1024 pixels
Correction area of every card
256*256 Pixels
Cascade control area of the largest regional
65536*65536 pixels
Cascade card number
65536 PCS
Network port exchange
Support, arbitrary use
Synchronization
Display Quality
Refresh rate for conventional chip
Serial frequency
0.2MHz-41.7MHz
Gray Level
Maximum 65536 levels
Minimum unit of OE values
8ns, 8ns multiples steps
Gray scale compensation
Each level grayscale compensate separately
Display module compatibility
Chip supports
PWM chip supports
Support hundreds of different specifications of the PWM chip, such as MBI, MY, SUM, etc
Scan mode
Conventional mode and high refresh rate mode to support refresh rate multiplied
Scan type
Support static sweep to 1/32 scan
Module Specifications Support
Support 4096 pixels within any row, any column
The direction of the cable
Support route from left to right, from right to left, from top to bottom, from bottom to top
Data Groups
16 RGB data groups
Data folded
Support to fold on the same or opposite direction, which improve refresh rate significantly
Data exchange
16 data groups for any exchange
Module snapshot
Support any pumping point
Data serial transmission
RGB, R8G8B8, R16G16B16, etc in the form of serial
Compatible device and interface type
Communication distance
Compatible with transmission equipment
DC power interface
Wire terminal
HUB Interface Type
HUB75 (Note: 32 scan with E signal)
Physical parameters
Size
143* 93mm
Input voltage
DC 3.3V-6V
Rated current
0.6A
Rated power
3W
Storage and transport temperature
-50℃ to 125℃
Operating Temperature
-20℃ to 75℃
Body static resistance
2KV
Weight
Monitoring function (in conjunction with mutil-function card)
Monitoring functions
Real time monitoring environment information like temperature, humidity, smog
Remote Control
Support for relay switch to turn on/off the power supply of equipments remotely
Pixel Level Calibration
Brightness calibration
Support
Chromaticity calibration
Support
Other features
Hot backup
Support, from A to B, and loop backup as well
Shaped screen
Support various freeform display, spherical display, creative display, etc. through the data arbitrary offset
|
