Colorlight receiving card i6 Model
Product Feature: Colorlight receiving card i6 Model
|
|
Tiny size: 68*36mm, DDR2 SODIMM interface, easy for maintenance
·Support 32 groups of RGB signal output
·Loading capacity: 256*256 pixels
·Low latency
·Supports Auto-Calibration
·Seam compensation
·Support 3D display
·Improved grayscale performance at low brightness
·Smart panel marking good for maintenance
·Auto-recognizes sequence of connected receiver cards
·High-precision point-by-point calibration in the Brightness and the chromaticity
·Supports smart module to save calibration coefficients and other information on module
·Temperature, humidity, power supply voltage monitoring on cabinet and fan rotating control
·Cable Detection
·Supports receiver card backup and power supply backup
·Various freeform display designs like spherical display, creative display, etc.
|

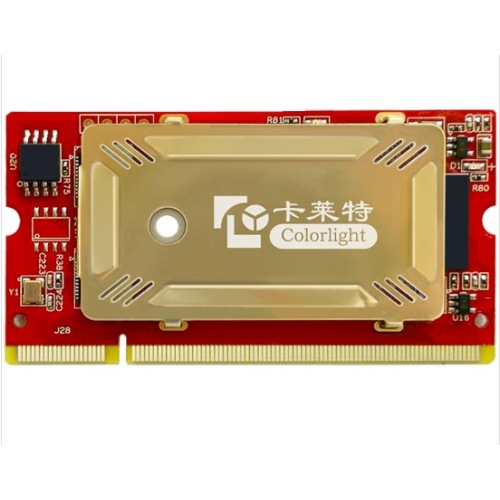

Product Image |
|
Product Parameters |
UTP cable≤140M
CAT6 cable≤170M
OPTIC FIBER transmission distance unrestricted
Cabinet temperature monitoring between -25℃ ~ 75℃
1 port for each card
One port to monitor receiver card humidity range with 20% ~ 95%
1 port for each card
One port for smoke monitoring and can work with relay to activate an alarm and turn off the display screen
1 port for each card
Proprietary redundant firmware backup on card no matter how to use, upgrade, send parameters, continuous functionality
Control system parameters
Sending device
All of Colorlight`s sending devices
Capacity
Full-color: 256*256 Pixels
Cascade Control Area of the Largest Region
65536*65536 Pixels
Network Port Exchange
Supported, arbitrary use
Gray Level
Maximum 65536 Levels
Display module compatibility
Chip Supports
Supports conventional chips, PWM chips, lighting chips and other mainstream chips
Scan Mode
Two scanning methods to support refresh rate multiplier
Scan Type
Supports static sweep to 1/32 scan
Module Specifications Support
Supports 4096 pixels within any row, any column
Cable Direction
Supports route from left to right, from right to left, from top to bottom, from bottom to top
Data Sets
32 RGB data sets
Data Folded
Supports 1~8 any discount to improve refresh rate.
Data Exchange
32 sets of data any exchange
Module Snapshot
Supports any pumping point
Compatible device and interface type
Communication Distance
Compatible with Transmission Equipment
Gigabit switch, fiber transceiver, optical switches
Size
67.6*32.9mm
Input Voltage
DC 3.3V~6V
Rated Current
0.6A
Rated Power
3W
Storage and Transport Temperature
-50℃~125℃
Operating Temperature
-25℃~75℃
Body Static Resistance
2KV
Weight
9.5g
Monitoring function (in conjunction with multi-function card)
Temperature Monitoring
Humidity Monitoring
Bit Error Monitoring
Monitoring the total number of data packets and error rate to check network quality
Supply Voltage Monitoring
5 ports for supply voltage monitoring
Smoke Monitoring
Full Color LCD Display Panel
Supports full color LCD display panel
Pixel level calibration
Brightness Calibration
Supported
Chromaticity Calibration
Supported
Other features
Hot Backup
Supports loop backup, double sender backup,
Shaped Screen
Supports various freeform display, spherical display, creative display, etc. through the date arbitrary offset
Program Backup
|
