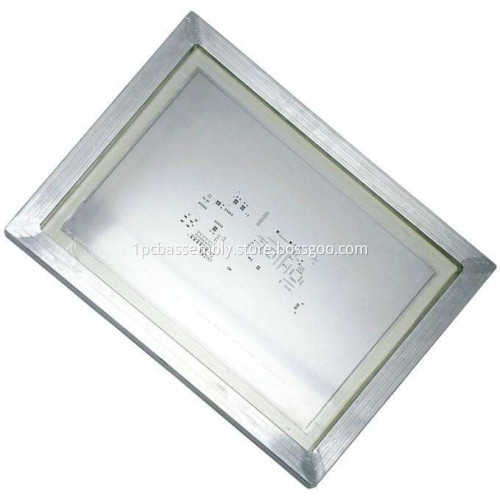

Stainless Laser SMD Stencil Electropolishing SMT Stencil
ZhongFeng Electronic is the professional turnkey PCB Assembly manufacturer and Stainless Laser SMD Stencil Electropolishing SMT Stencil is the tool required for PCB assembly job. With our 10+ years experience, we could open un-framed stencil and framed stencil in most sizes and thickness. To do the precise PCB assembly, you need have a precise SMD Stencil so the solder paste could be printed on the PCB boards in perfect. Especially when your PCB boards have 01005, 0201, BGA, fine pitch QFN QFP parts.
SMD Stencil Size and Price Table
|
Stencil Size (width*length, unit: mm) |
Valid Size (width*length, unit: mm) |
Cost (USD) |
Weight (KG) |
|
280×380 (Un-Framed Stencil) |
190×290 |
15usd/pcs |
0.2KG |
|
370×470 |
190×290 |
20usd/pcs |
1.5KG |
|
300×400 |
140×240 |
25usd/pcs |
1KG |
|
420×520 |
240×340 |
30usd/pcs |
1.8KG |
|
450×550 |
270×370 |
40usd/pcs |
2KG |
|
58.40×58.40 |
380×380 |
48usd/pcs |
3.2KG |
|
550×650 |
350×450 |
48usd/pcs |
3.5KG |
|
736×736 |
500×500 |
64usd/pcs |
5KG |
|
400×600 |
220×400 |
35usd/pcs |
2.5KG |
|
400×800 |
220×600 |
40usd/pcs |
3.5KG |
|
400×1000 |
220×760 |
45usd/pcs |
4KG |
|
400×1200 |
220×1000 |
50usd/pcs |
6KG |
|
400×1400 |
220×1200 |
64usd/pcs |
7KG |
|
500×800 |
320×600 |
48usd/pcs |
3.5KG |
|
500×700 |
320×500 |
48usd/pcs |
3.5KG |
|
500×1200 |
320×1000 |
60usd/pcs |
7KG |
|
500×1400 |
320×1200 |
72usd/pcs |
7.5KG |
|
500×1500 |
320×1300 |
80usd/pcs |
8KG |
Our Services:
1. PCB Design: One-stop EMS manufacturer, speciallized in designing wireless charging PCBA, bluetooth earphone & Voice box PCBA and other consumer electronics products.
2. PCB Manufacture: Standard FR4 1-36layer PCB, Flex PCB, Rigid-Flex PCB, HDI PCB, Rogers PCB, Metal Core PCB, etc.
3. PCB Assembly: SMT and THT assembly, available for 01005, fine pitch and BGA assembly.
4. Components Sourcing: Available to source all components shown in BOM file (BOM Kitting), hard to find components and long lead time components, etc.
5. One-Stop Turnkey PCBA Manufacture: PCB design+PCB Manufacture+Components Sourcing+PCB Assembly+Electronic Assembly, or PCB Manufacture+Components sourcing+PCB Assembly, etc.
Technical Capabilities:
|
PCB Manufacture Capabilities |
|
|
Layers |
1-36 layers |
|
Material |
FR-4 (Standard FR4, Mid-Tg FR4, Hi-Tg FR4, Lead free assembly material) , Polymide, Metal Core, Rogers, etc. |
|
Board Thickness |
0.1mm-6.0mm (.016"-.126") |
|
Copper Thickness |
1/2oz-6oz(18um-210um) |
|
Board size |
600mm*1200mm |
|
Min Tracing/Spacing |
0.075mm/0.075mm (3mil/3mil) |
|
Min drilling Hole diameter |
0.15mm(6mil), 0.1mm(4mil)-laser drill |
|
Solder Mask |
LPI, different colors(Green, Green matt, Black, Black Matt, White, Red, Yellow, Blue) |
|
Silkscreen color |
White, Blue, Black, Red, Yellow |
|
Surface finish |
Lead free HASL, immersion gold, golden finger, immersion tin, immersion silver, OSP, Carbon oil, plated hard gold(up to 100u") |
|
Impedance tolerance |
+/-5%~+/-10% |
|
Chamfer of Gold Fingers |
20, 30, 45, 60 |
|
Test |
Flying probe or Testing fixture |
|
PCB Assembly Capabilities |
|
|
Quantity |
From prototype to big volume, no MOQ |
|
Assembly type |
SMT, THT or Hybrid |
|
Parts procurement |
Full turnkey (we provided all components) |
|
Partial turnkey ( Customer provide the main components and we provide the rest) |
|
|
Kitted (Customer provide all components) |
|
|
Component types |
SMT 01005, BGA 0.3mm pitch, QFP 0.3mm pitch, etc. |
|
Test |
Custom testing, ICT, FCT, AOI, Test jig |
Our Team and Office:
Our PCB Manufacture Factory:
Our PCB Assembly Factory:
FAQ:
Q: What files need for custom PCB manufacture?
A: Gerber or .pcb or .pcbdoc or .brd file is required.
Q: What files need for custom PCB assembly order?
A: Gerber and the BOM files are required, if you have pick&place file, send it to us as well.
Q: What is payment terms acceptable?
A: For new customer and the total amount within 10000usd, 100% payment in advance by PayPal or T/T or WU. For total amount beyond 10000usd, please contact us.
Q: What files need for PCB/PCBA clone services?
A: For PCB/PCBA clone service, send us the pictures for evaluate first, and we will need 1-2 samples of the PCB/PCBA board for copying.
