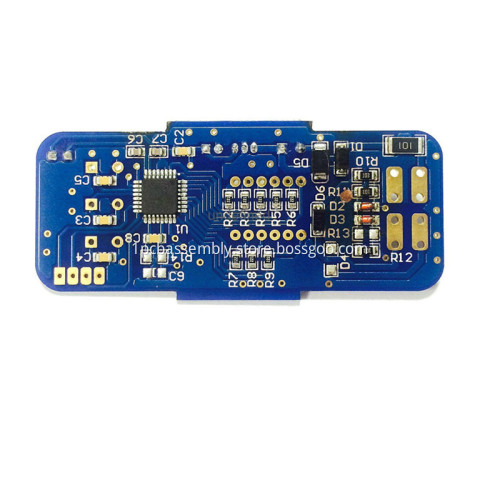

Customized Fr4 94v0 12v battery charger pcba
Originally, every electronic component had wire leads, and a PCB had holes drilled for each wire of each component. The component leads were then inserted through the holes and soldered to the copper PCB traces. This method of assembly is called through-hole construction. In 1949, Moe Abramson and Stanislaus F. Danko of the United States Army Signal Corps developed the Auto-Sembly process in which component leads were inserted into a copper foil interconnection pattern and dip soldered. The patent they obtained in 1956 was assigned to the U.S. Army.[9] With the development of board lamination and etching techniques, this concept evolved into the standard printed circuit board fabrication process in use today. Soldering could be done automatically by passing the board over a ripple, or wave, of molten solder in a wave-soldering machine. However, the wires and holes are inefficient since drilling holes is expensive and consumes drill bits and the protruding wires are cut off and discarded.
From the 1980s onward, small surface mount parts have been used increasingly instead of through-hole components; this has led to smaller boards for a given functionality and lower production costs, but with some additional difficulty in servicing faulty boards.
Alternatives to PCBs include wire wrap and point-to-point construction, both once popular but now rarely used. PCBs require additional design effort to lay out the circuit, but manufacturing and assembly can be automated. Specialized CAD software is available to do much of the work of layout. Mass-producing circuits with PCBs is cheaper and faster than with other wiring methods, as components are mounted and wired in one operation. Large numbers of PCBs can be fabricated at the same time, and the layout only has to be done once. PCBs can also be made manually in small quantities, with reduced benefits.
Our Services:
1. PCB Design: One-stop EMS manufacturer, speciallized in designing wireless charging PCBA, bluetooth earphone & Voice box PCBA and other consumer electronics products.
2. PCB Manufacture: Standard FR4 1-36layer PCB, Flex PCB, Rigid-Flex PCB, HDI PCB, Rogers PCB, Metal Core PCB, etc.
3. PCB Assembly: SMT and THT assembly, available for 01005, fine pitch and BGA assembly.
4. Components Sourcing: Available to source all components shown in BOM file (BOM Kitting), hard to find components and long lead time components, etc.
5. One-Stop Turnkey PCBA Manufacture: PCB design+PCB Manufacture+Components Sourcing+PCB Assembly+Electronic Assembly, or PCB Manufacture+Components sourcing+PCB Assembly, etc.
Technical Capabilities:
|
PCB Manufacture Capabilities |
|
|
Layers |
1-36 layers |
|
Material |
FR-4 (Standard FR4, Mid-Tg FR4, Hi-Tg FR4, Lead free assembly material) , Polymide, Metal Core, Rogers, etc. |
|
Board Thickness |
0.1mm-6.0mm (.016"-.126") |
|
Copper Thickness |
1/2oz-6oz(18um-210um) |
|
Board size |
600mm*1200mm |
|
Min Tracing/Spacing |
0.075mm/0.075mm (3mil/3mil) |
|
Min drilling Hole diameter |
0.15mm(6mil), 0.1mm(4mil)-laser drill |
|
Solder Mask |
LPI, different colors(Green, Green matt, Black, Black Matt, White, Red, Yellow, Blue) |
|
Silkscreen color |
White, Blue, Black, Red, Yellow |
|
Surface finish |
Lead free HASL, immersion gold, golden finger, immersion tin, immersion silver, OSP, Carbon oil, plated hard gold(up to 100u") |
|
Impedance tolerance |
+/-5%~+/-10% |
|
Chamfer of Gold Fingers |
20, 30, 45, 60 |
|
Test |
Flying probe or Testing fixture |
|
PCB Assembly Capabilities |
|
|
Quantity |
From prototype to big volume, no MOQ |
|
Assembly type |
SMT, THT or Hybrid |
|
Parts procurement |
Full turnkey (we provided all components) |
|
Partial turnkey ( Customer provide the main components and we provide the rest) |
|
|
Kitted (Customer provide all components) |
|
|
Component types |
SMT 01005, BGA 0.3mm pitch, QFP 0.3mm pitch, etc. |
|
Test |
Custom testing, ICT, FCT, AOI, Test jig |
Our Team and Office:
Our PCB Manufacture Factory:
Our PCB Assembly Factory:
Customer Visiting
Packing and shipping
FAQ:
Q: What files need for custom PCB manufacture?
A: Gerber or .pcb or .pcbdoc or .brd file is required.
Q: What files need for custom PCB assembly order?
A: Gerber and the BOM files are required, if you have pick&place file, send it to us as well.
Q: What is payment terms acceptable?
A: For new customer and the total amount within 10000usd, 100% payment in advance by PayPal or T/T or WU. For total amount beyond 10000usd, please contact us.
Q: What files need for PCB/PCBA clone services?
A: For PCB/PCBA clone service, send us the pictures for evaluate first, and we will need 1-2 samples of the PCB/PCBA board for copying.
