Invisible screens Rotary Damper Shaft Damper

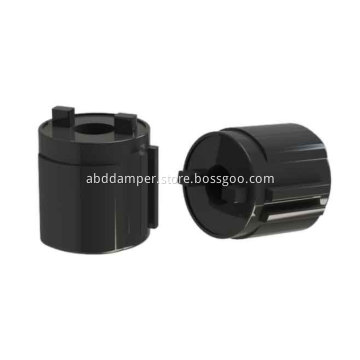

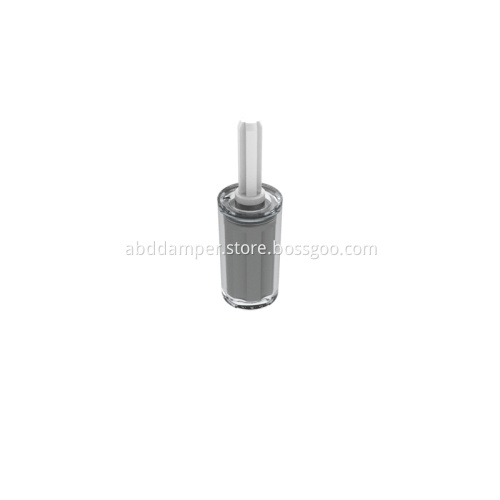

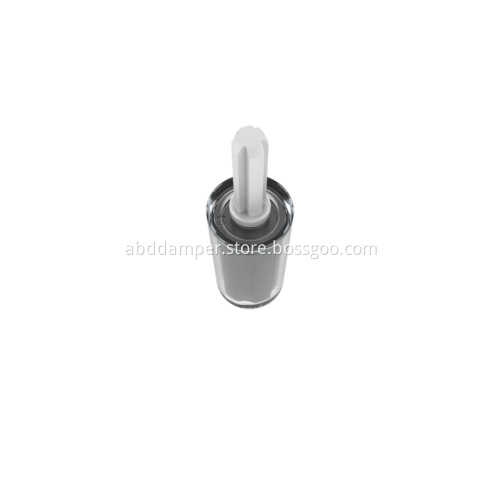

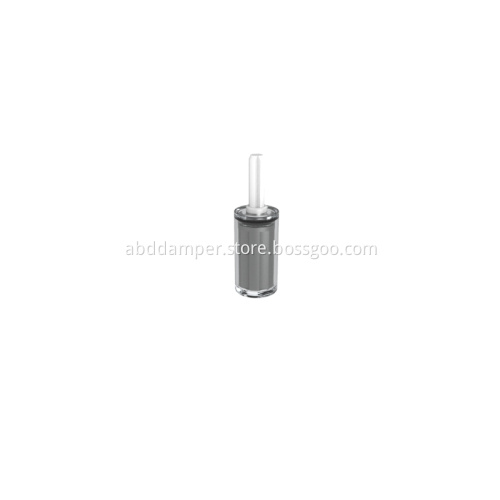

The damping torque direction of ABD invisible screens is rotating on the right or the left. Invisible screens rotary damper shaft damper can be installed directly in the pivot. When rotary damper is used in invisible screens, different connectors can be selected for the damper according to the type of aluminum pipe profile. Rotary damping functions as velocity control in order to roll up invisible screens in accommodation. Our rotary damping is high-performance by separating clutch out from original one.When rotary damper shaft damper use in the invisible screens , it will keep the invisible screens roll up silently and slowly. ABD invisible screens shaft dampers are easy to install. Once installed, they are increasing equipment life and reducing maintenance expenses.

Welcome to purchase high quality and precise invisible screens rotary dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. We have been specialized in this field for many years. If you are interested in any of  invisible screens shaft dampers or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 100r/min

3. Max. circle rate: 10 cycle/min (Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50℃

5.Storage temperature:-30~80℃

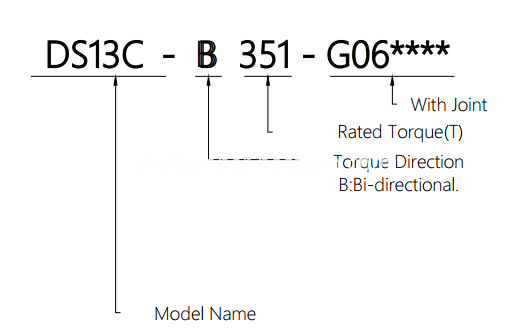

Specifications

Drawings

Materials

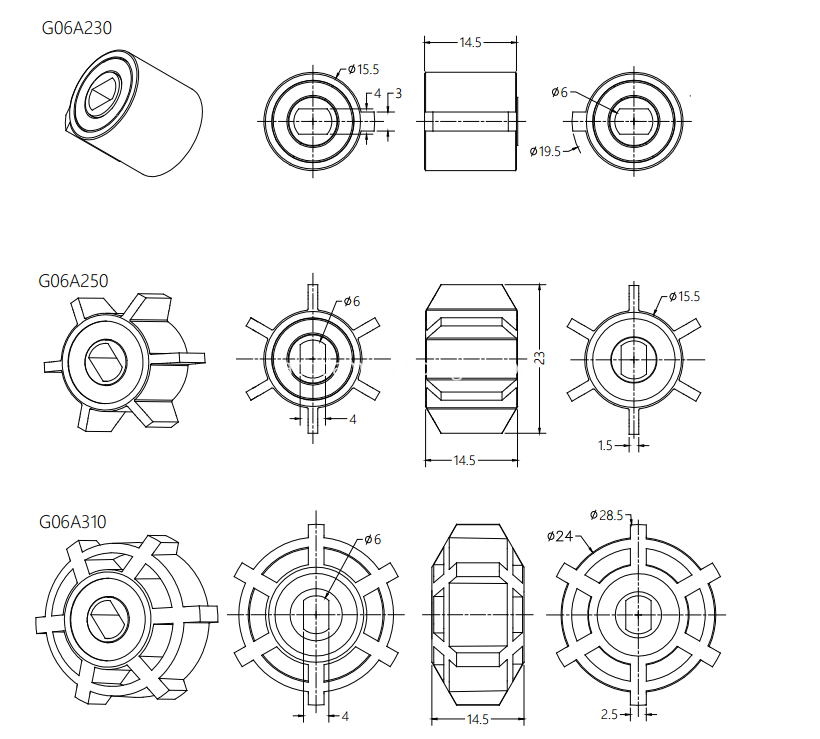

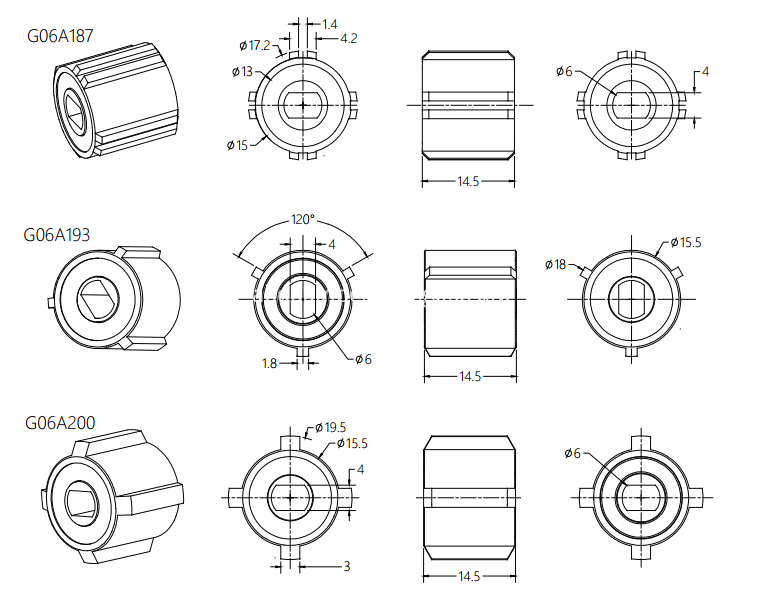

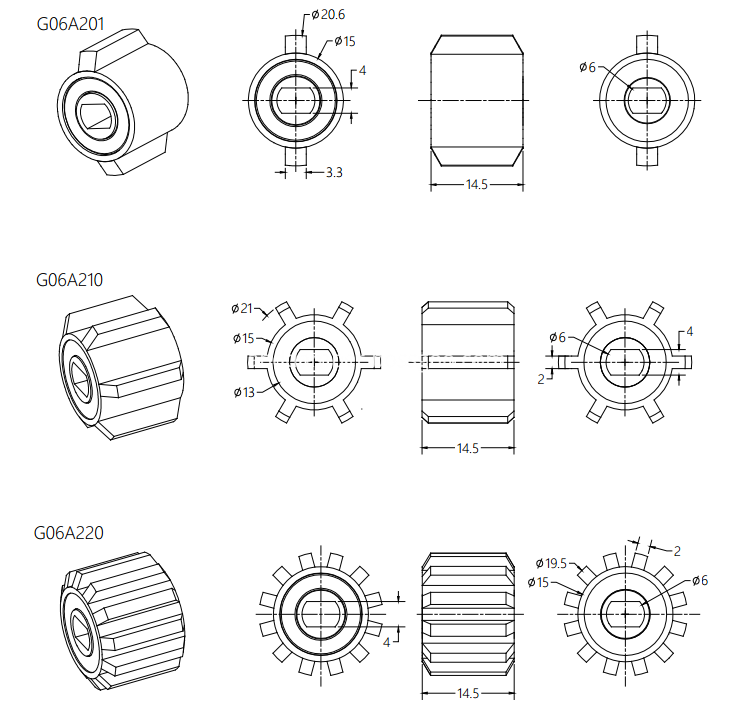

Joint specifications: G06A187~G06A310

After installing the unidirectional joint, the damper torque single direction output.
By adjusting the way of installation of one-way joint, the torque direction can be changed.

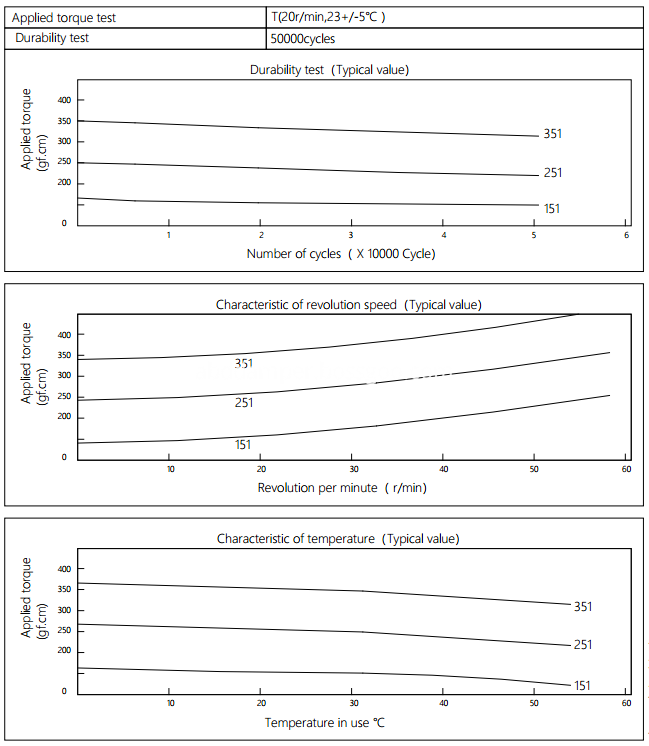

Damper Characteristics

Applied torque:(T)

Test Temperature: 23+/-5℃

Rotating speed:20r/min

Durability test Method:Clockwise 360 °, 360 ° anti-clockwise

Rotating speed:50r/min

Test Frequency:1cycle/min

Test Temperature: 23±5℃

Durability test cycle: 50000 cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

After installing the unidirectional joint, the damper torque single direction output. By adjusting the way of installation of one-way joint, the torque direction can be changed.

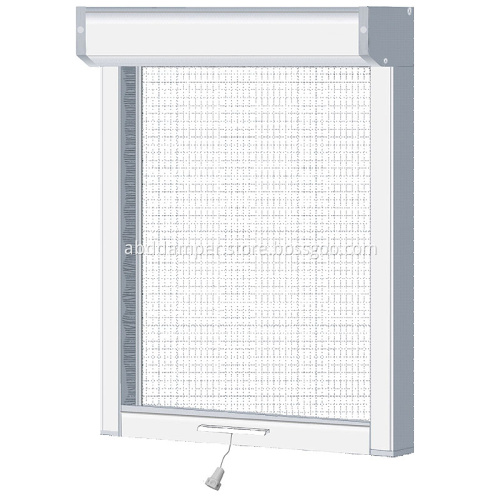

Applications

Invisible screens, shade screens and many other roll up blinds, etc.

Caution

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
