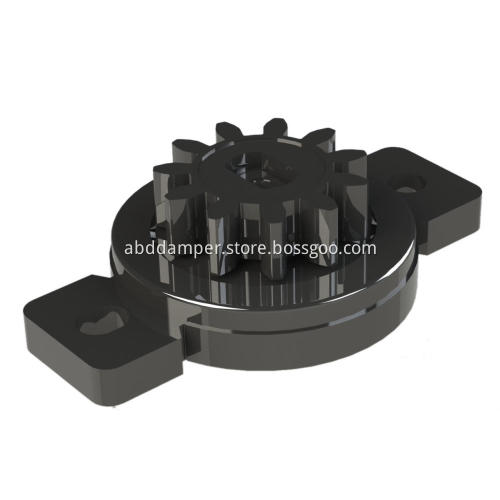

Automobile Interior Decoration Gear Type Rotary Damper

Small gear damper for automobile interior decoration. ABD gear type rotary dampers are used to dampen drives, control speed, and many other applications. ABD silicone oil viscous dampers are available in either fixed rate or adjustable models. The damping direction of the small gear rotary dampers with continuous rotation can be clockwise, counter clockwise, or in both directions. In automobile interior decoration gear type rotary damper with continuous rotation, a fluid damping is produced by the shearing or braking force of silicon fluids resistance between the surfaces of a rotor and a stator. The gear rotary damping moment is determined by the viscosity of the fluid and the size of the orifice or gap. ABD gear dampers are easy to install and totally maintenance free.

Welcome to purchase high quality and precise gear type rotary damper for automobile interior decoration from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. We have been specialized in this field for many years. And we offer customers the most competitive price. If you are interested in any of automobile interior decoration gear type rotary dampers or would like to discuss a custom order, please feel free to contact us.

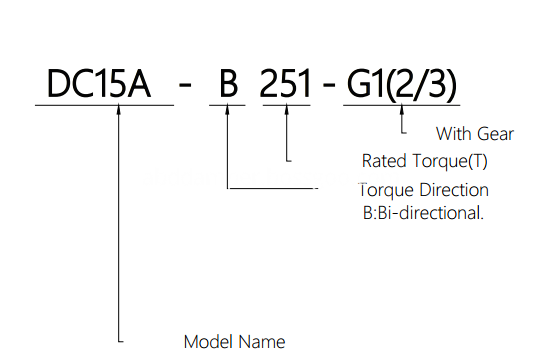

Specifications

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 50r/min

3. Max. circle rate: 6 cycle/min(Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50℃

5.Storage temperature:-30~80℃

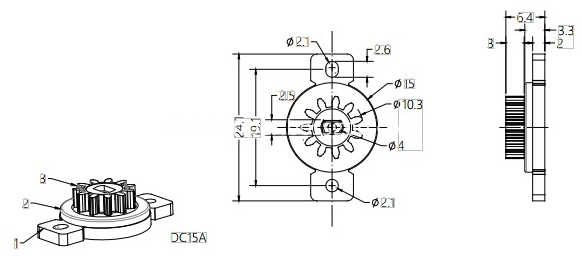

Drawings

Materials

Damper Characteristics

Applied torque: (T)

Test Temperature: 23+/-5℃

Rotating speed:20r/min

Durability test Method: Clockwise 360 °, 360 ° anti-clockwise

Rotating speed:20r/min

Test Frequency: 1cycle/min

Test Temperature: 23±5℃

Durability test cycle: 50000cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

Applications

Electrical products,household appliances,automobile interior decoration,furniture equipment,office equipment,rotating mechanism and many other cover plates, etc.

Caution

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
