Steel Body Rotary Damper Disk Damper for Scanners
With our Steel Body Rotary Damper Disk Damper,you can elevate the performance of your scanning equipment meticulously designed to offer good durability and control. Perfectly suited for a range of scanning applications, this damper is engineered to enhance the smooth operation and longevity of your devices.
Our Disk Damper is made from high-quality steel, ensuring robust performance and resilience under various operational conditions. This construction provides superior damping capabilities, can reduce vibrations and ensuring that your scanner operates quietly and efficiently.
One of the standout features of this damper is its Adjustable Dampers. With the ability to modify the damping force, you can tailor the performance to match the specific needs of your scanning equipment. This flexibility ensures optimal operation, whether you're handling frequent scans or high-volume tasks.
For those in more demanding environments, such as construction or industrial settings, we offer the Excavator Disk Damper version. This variant is designed to withstand heavy-duty use, making it an ideal choice for machinery that requires robust damping solutions.
Additionally, we understand the importance of keeping your equipment ingood condition, which is why we provide a selection of Spare Disk Damper options. Having these spares readily available ensures that you can quickly replace any worn-out components, minimizing downtime and maintaining smooth operation.
If your application requires a more specialized design, our range also includes the Oval Disk Damper. This version is tailored for specific mechanical configurations, offering a precise fit and enhanced performance for unique scanning setups.
In summary, the Steel Body Rotary Damper Disk Damper for Scanners combines advanced engineering with practical features. Whether you need an Adjustable Damper, a Spare Disk Damper, or an Oval Disk Damper, our product line is designed to meet diverse needs with reliability and ease. Upgrade your scanning equipment with our premium dampers and experience the difference in performance and durability.
Specifications
| Part No. | Applied Torque(T) (Kgf.cm ) | A | B | C | D | E | F | G | H | R | V | |
| DQ47A | 502-203 | 5~20Kgf.cm | 65 | 56 | 8 | 4.5 | 47 | 42.8 | 1.2 | 10.3 | 4.5 | 10 |
| DQ51A | 103-303 | 10~30Kgf.cm | 72 | 62 | 10 | 5.5 | 51 | 47.1 | 1.2 | 10.3 | 5.5 | 13 |
| DQ57A | 203-503 | 20~50Kgf.cm | 79 | 68 | 10 | 5.5 | 57 | 52.4 | 1.6 | 10.3 | 5.5 | 13 |
| DQ63A | 403-703 | 40~70Kgf.cm | 89 | 76 | 12.5 | 6.5 | 63 | 58.6 | 1.6 | 10.3 | 6.5 | 17 |
| DQ70A | 603-104 | 60~100Kgf.cm | 95 | 82 | 12.5 | 6.5 | 70 | 65.4 | 1.6 | 10.3 | 6.5 | 17 |
NOTE:
1. Please contact the corresponding product engineer for specific torque products.
2. Max. rotation speed: 50r/min
3. Max. circle rate: 6 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)
4.Operating temperature: -10~50℃
5.Storage temperature:-30~80℃
Drawings
The damper square hole coordinates with the rotation axis dimension tolerance.

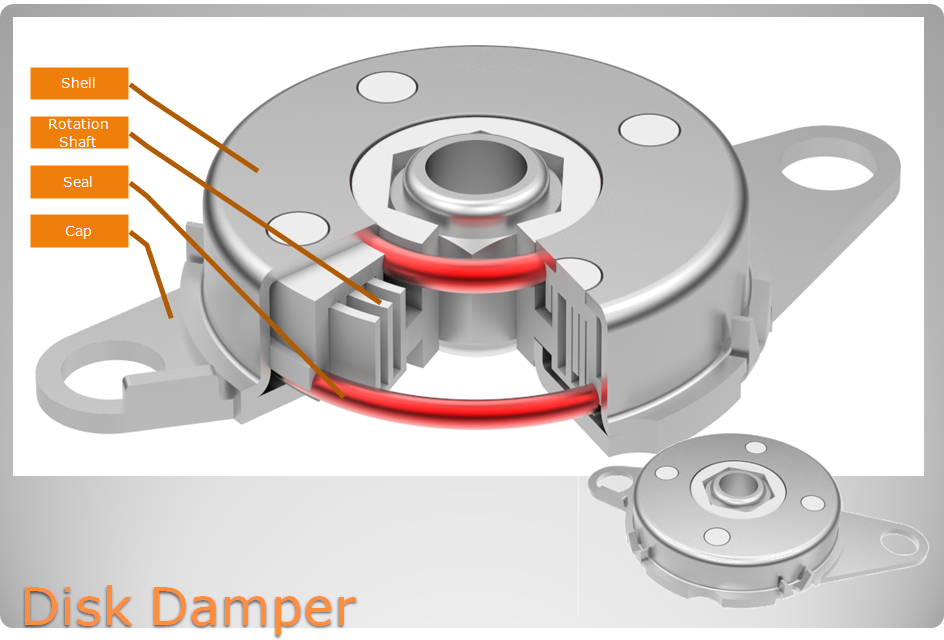

Materials
| 3 | Shaft | PA/POM |
| 2 | Cover | SPFC |
| 1 | Shell | SPFC |
| NO. | Description | Material |
Damper Characteristics
Applied torque: (T)
Test Temperature:23+/-5℃
Rotating speed:20r/min
Durability test Method:Clockwise 360 °, 360 °anti-clockwise
Rotating speed:20r/min
Test Frequency:(1cycle/min)
Test Temperature: 23±5℃
Durability test cycle: 50000 cycle
Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.
