Rotary Damper Disk Damper For Office Equipment
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Transportation:
- Ocean, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1000000 |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001:2015 |
| HS Code: | 3926901000 |
| Transportation: | Ocean,Air |
| Port: | Shenzhen |

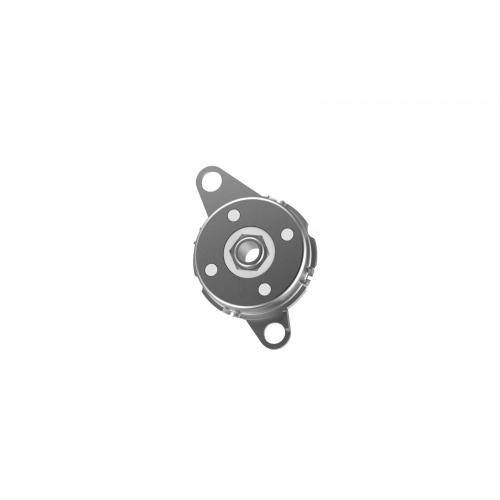

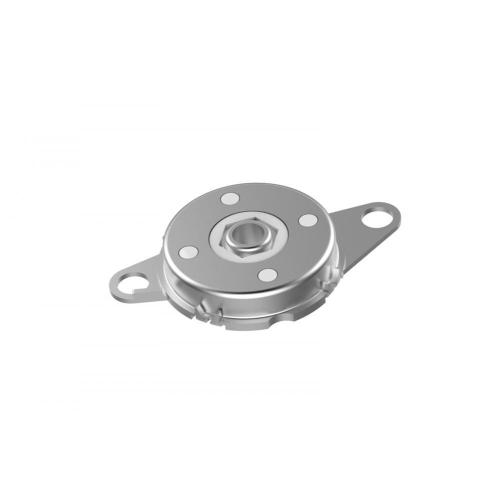

The direction for damping torque of ABD DQ47A disk rotary dampers with a steel body is either clockwise, anticlockwise or bi-directional. ABD disk dampers provide energy absorption and rotational deceleration. Steel body rotary disk damper for office equipment soft close, infinite angle rotation, one-side damping. Our disk dampers are the perfect solution for a wide range of applications, from office equipment, and furniture equipment to commercial equipment to. ABD Disk dampers are designed to control and smooth out the opening and closing of lids, and doors. This smooth deceleration provides and anti-slam function. When office equipment rotary damper disk damper use in the office equipment, it will keep the equipment close silently and slowly. ABD disk dampers are crucial for many products which require safety, high quality and durability solutions. ABD office equipment disk dampers are easy to install.once installed, they are increasing equipment life and reducing maintenance expenses.
Welcome to purchase high quality and precise office equipment disk dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. Our products with advantages of excellent quality, competitive price, and best service are your first choice.If you have interest in our office equipment disk dampers or require any further information, please do not hesitate to contact me.
NOTE:
1. Please contact the corresponding product engineer for specific torque products.
2. Max. rotation speed: 50r/min
3. Max. circle rate: 6 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)
4.Operating temperature: -10~50℃
5.Storage temperature:-30~80℃
Specifications
| Part No. | Applied Torque(T) (Kgf.cm ) | A | B | C | D | E | F | G | H | R | |
| DQ47A | 502-203 | 5~20Kgf.cm | 65 | 56 | 6 | 4.5 | 47 | 42.8 | 1.2 | 10.3 | 4.5 |
| DQ51A | 103-303 | 10~30Kgf.cm | 72 | 62 | 8 | 5.5 | 51 | 47.1 | 1.2 | 10.3 | 5.5 |
| DQ57A | 203-503 | 20~50Kgf.cm | 79 | 68 | 10 | 5.5 | 57 | 52.4 | 1.6 | 10.3 | 5.5 |
| DQ63A | 403-703 | 40~70Kgf.cm | 89 | 76 | 10 | 6.5 | 63 | 58.6 | 1.6 | 10.3 | 6.5 |
| DQ70A | 603-104 | 60~100Kgf.cm | 95 | 82 | 10 | 6.5 | 70 | 65.4 | 1.6 | 10.3 | 6.5 |
Drawings
The damper circular hole coordinates with the rotation axis dimension tolerance.
Materials
| 3 | Shaft | PA/POM |
| 2 | Cover | SPFC |
| 1 | Shell | SPFC |
| NO. | Description | Material |
Damper Characteristics
Applied torque:(T)
Test Temperature:23+/-5℃
Rotating speed:20r/min
Durability test Method:Clockwise 360 °, 360 °anti-clockwise
Rotating speed:20r/min
Test Frequency:(1cycle/min)
Test Temperature: 23±5℃
Durability test cycle: 50000 cycle
Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.
How to use the damper
1.Dampers may generate torque in both directions, clockwise, or counter-clockwise.
2.Please make sure that a shaft attached to a damper has a bearing, as the damper itself is not fitted with one.
3.please refer to the recommended dimensions below when creating a shaft for DQ47A-R. Not using the recommended shaft dimensions may cause the shaft to slip out.
Applications
Theater seats, auditorium seating, wall chairs, scanner, office equipment, furniture equipment, commercial equipment, auto seats, auto seat back plate, rotating mechanisms and many other cover plates, etc.
Caution
2. Do not operate without an external stopper.
3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
Our Company
ABD Equipment Co., Ltd. focuses on lean manufacturing of precision components in molding, assembly and quality management. The main products we develop and design include precision motion hinges, damping components, motor gearbox drive components, lock bodies and stop mechanisms for motion control related products.
ABD's products are widely used in household appliances, electrical products, industrial manufacturing, furniture decoration, hutch defends equipment, public facilities, etc. Our products is conducive to performing structural movement in soft, silent and safe environment, mitigating impact load, avoiding strike damage, prolonging mechanical life, reducing noise disturbance, improving product quality and improve customer satisfaction.
Our products range from barrel damper, stop damper, gear damper, disk damper, shaft damper, damping gas spring. Feel free to contact us if you are interested in any of the ABD products and services.
