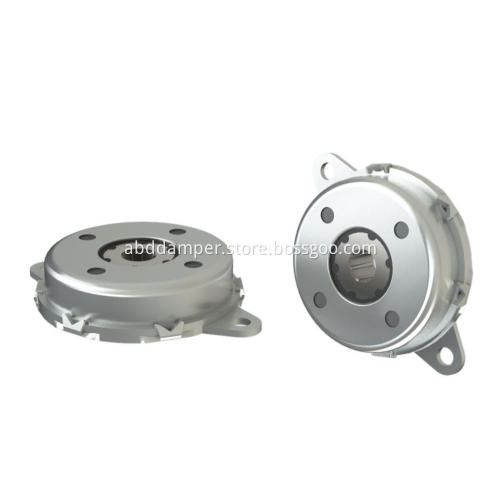

Rotary Damper Disk Damper for Theater seat

ABD disk dampers provide energy absorption and rotational deceleration. Steel body rotary disk damper for theater seat soft close, infinite angle rotation, two-side or one-side damping. Our disk dampers are the perfect solution for a wide range of applications, from wall chairs, and auto seats to theater seat to. ABD Disk dampers are designed to control and smooth out the opening and closing of lids, and doors. This smooth deceleration provides and anti-slam function. When theater seat rotary damper disk damper use in the seat, it will keep the seat close silently and slowly. ABD disk dampers are crucial for many products which require safety, high quality and durability solutions. ABD theater seat disk dampers are easy to install.once installed, they are increasing equipment life and totally maintenance free.

Welcome to purchase high quality and precise theater seat disk dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. We have been specialized in this field for many years. If you are interested in any of theater seat disk dampers or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 50r/min

3. Max. circle rate: 6 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50℃

5.Storage temperature:-30~80℃

Drawings

The damper circular hole coordinates with the rotation axis dimension tolerance.

Materials

Damper Characteristics

Applied torque:(T)

Test Temperature:23+/-5℃

Rotating speed:20r/min

Durability test Method:Clockwise 360 °, 360 °anti-clockwise

Rotating speed:20r/min

Test Frequency:(1cycle/min)

Test Temperature: 23±5℃

Durability test cycle: 50000 cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

How to use the damper

1.Dampers may generate torque in both directions, clockwise, or counter-clockwise.

2.Please make sure that a shaft attached to a damper has a bearing, as the damper itself is not fitted with one.

3.please refer to the recommended dimensions below when creating a shaft for DQ47A-R/L. Not using the recommended shaft dimensions may cause the shaft to slip out.

Applications

Theater seats, auditorium seating, wall chairs, scanner, office equipment, furniture equipment, commercial equipment, auto seats, auto seat back plate, rotating mechanisms and many other cover plates, etc.

Caution

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
