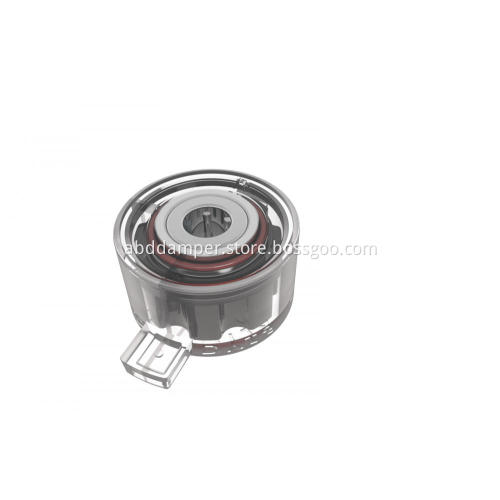

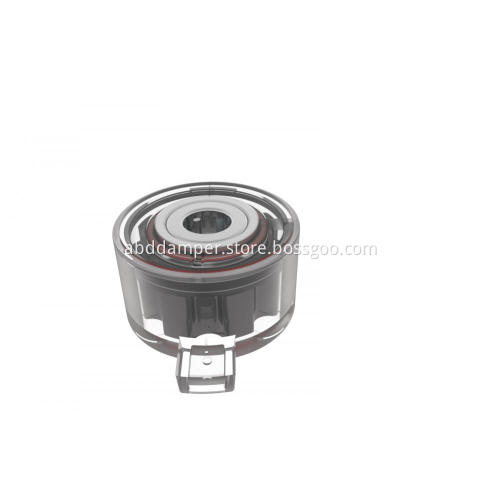

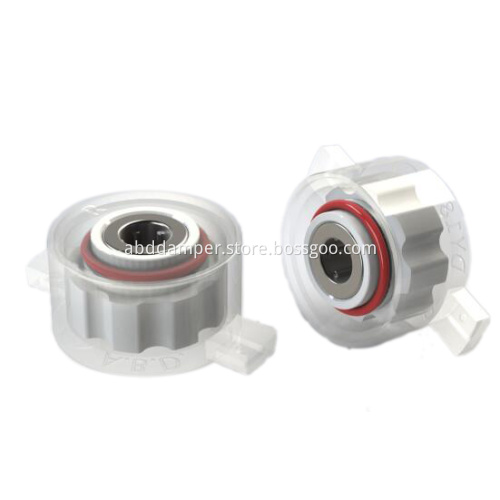

Rotary Damper Barrel Damper For keyboard

Keyboard dampers are rotary dampers that mount at the hinge-point and are designed to fit into computer conference table. A typical application is keyboard. The design of middle through hole is easy to install. The damping direction of the rotary dampers with continuous rotation can be uni-directional, bi-directional. In rotary dampers with continuous rotation, a fluid damping is produced by the shearing or braking force of silicon fluids resistance between the surfaces of a rotor and a stator. The damping moment is determined by the viscosity of the fluid and the size of the orifice or gap. The damping characteristics can be customized by changing the viscosity of the silicon fluid or by changing the structure of the rotor and stator. Our keyboard barrel dampers can make the movement of structures soft, quiet and safe to mitigate the impact, avoid the damage, increase the mechanical life, reduce noise, and improve product quality.

Full inspection of all our products torque, guarantee the stability of the product torque. Our company has a leading R & D team in the peer, our product has several patents, ensuring a steady stream of new product development for the company. We pursue creating the value for you based on our high quality service, products and favorable prices. Feel free to contact us if you are interested in any of the ABD dampers and services.

Specifications

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 50r/min

3. Max. circle rate: 6 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50℃

5.Storage temperature:  -30~80℃

Drawings

Materials

Damper Characteristics

Applied torque: (T)

Test Temperature: 23+/-5℃

Rotating speed: 20r/min

Durability test Method:Clockwise 360 °, 360 ° anti-clockwise

Rotating speed:20r/min

Test Frequency: 1cycle/min

Test Temperature: 23±5℃

Durability test cycle: 50000cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

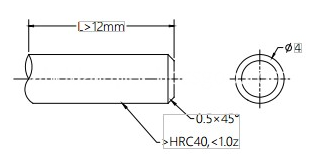

The damper circular hole coordinates with the rotation axis dimension tolerance.

Applications

Car video screen, computer conference table, keyboard, display flip,vending machine, middle-size and small-size cover plate slow bounce, middle-size and small-size cover plate soft close, etc.

Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.
3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.

Our Company

ABD Equipment Co., Ltd. focuses on lean manufacturing of precision components in molding, assembly and quality management. The main products we develop and design include precision motion hinges, damping components, motor gearbox drive components, lock bodies and stop mechanisms for motion control related products.

ABD's products are widely used in household appliances, electrical products, industrial manufacturing, furniture decoration, hutch defends equipment, public facilities, etc. Our products is conducive to performing structural movement in soft, silent and safe environment, mitigating impact load, avoiding strike damage, prolonging mechanical life, reducing noise disturbance, improving product quality and improve customer satisfaction.

Our products range from barrel damper, vane damper, stop damper, gear damper, disk damper, shaft damper, shock damper, damping gas spring. Feel free to contact us if you are interested in any of the ABD products and services.
