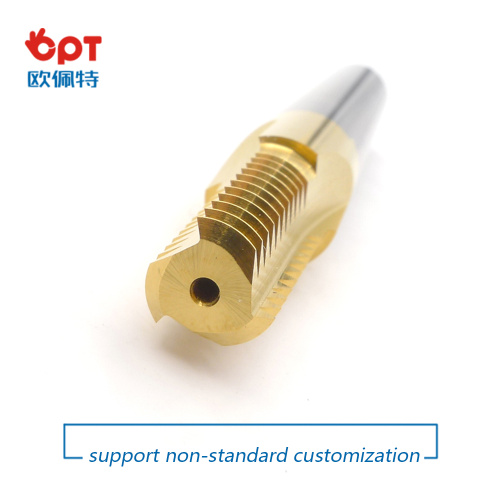

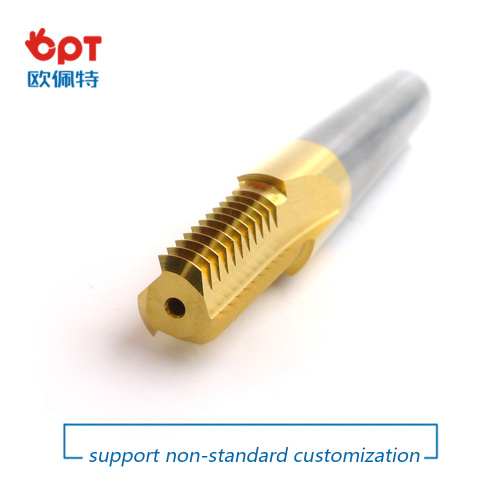

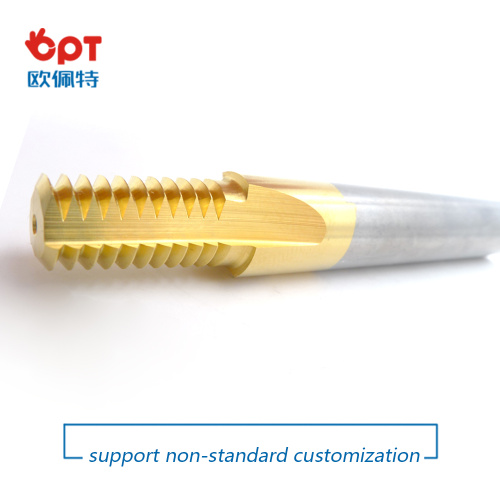

Solid Carbide Thread Mill NPT
For the thread that does not allow the transition buckle or the undercut structure, the traditional turning method or taps and die are difficult to machine, but it is very easy to realize by CNC milling. In addition, the durability of the thread milling cutter is ten or even ten times that of the tap, and in the process of numerically milling the thread, the adjustment of the thread diameter size is extremely convenient, which is difficult to achieve by using taps and die. Due to the many advantages of thread milling, the milling process has been widely used in large-scale thread production in developed countries.
ADVANTAGE:
1.is not afraid of breaking, after the wire breaks and breaks, the workpiece may be scrapped. The thread milling cutter is easy to take out even if it is broken manually, and the workpiece will not be scrapped.
2.thread milling cutters are much more efficient than wire tapping.
3. blind hole thread milling cutter can be milled to the bottom, wire tapping is not possible.
4. For some materials, thread milling cutters can be drilled. Milling teeth. Once chamfered, the wire tapping is not possible.
| Size | Dimension | Depth of thread | Model NO. | |||||
| tpi | Min. Dia. | D | D2 | L1 | L2 | mm | ||
| 27 | 1/16" | 6 | 5.9 | 57 | 9.41 | 0.66 | ZZ06059-WN27NPT | |
| 18 | 1/4" | 8 | 7.9 | 63 | 14.11 | 1.01 | ZZ08079-WN18NPT | |
| 14 | 1/2" | 12 | 11.9 | 83 | 19.96 | 1.33 | ZZ12119-WN14NPT | |
| 11.5 | 1" | 16 | 15.9 | 92 | 26.51 | 1.64 | ZZ16159-WN11.5NP | |
| 8 | 2 1/2" | 16 | 15.9 | 92 | 38.1 | 2.42 | ZZ16159-WN8NPT | |
