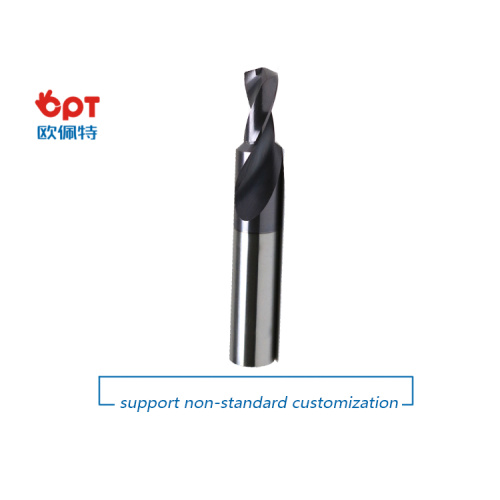

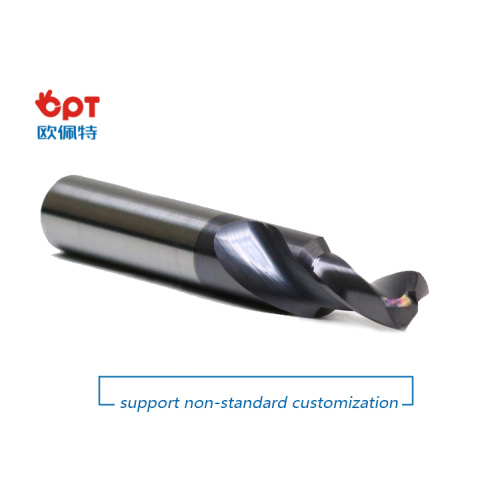

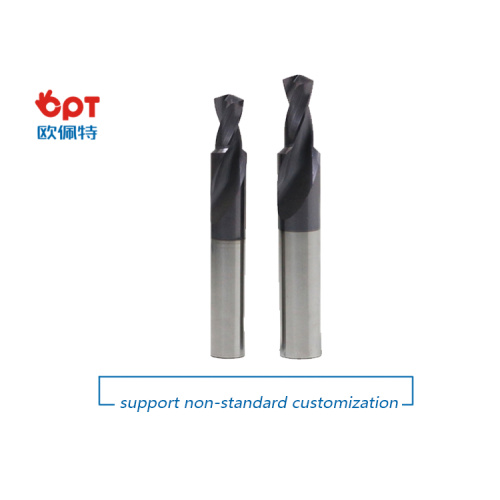

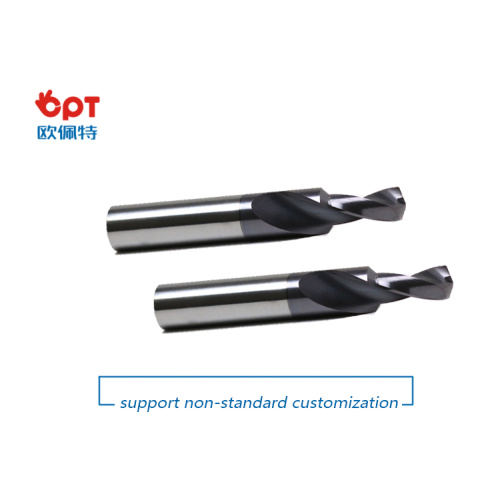

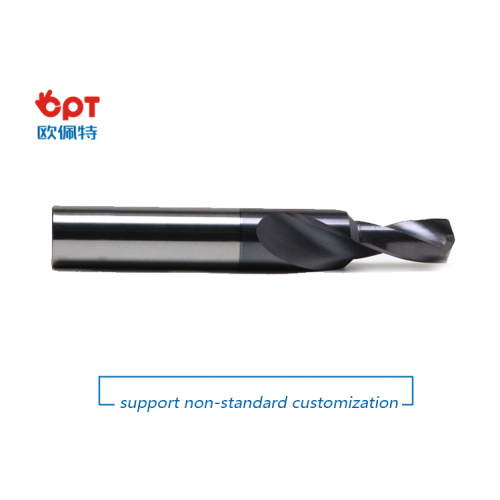

High quality tungsten coated carbide stepped drill bit
- Payment Type:
- L/C, T/T, D/P, Western Union
- Incoterm:
- FOB, CFR, CIF, FCA
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian, Shekou, Chiwan
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 pcs/month |
| Supply Ability: | 10000 pcs/month |
| Payment Type: | L/C,T/T,D/P,Western Union |
| Incoterm: | FOB,CFR,CIF,FCA |
| HS Code: | 108040399 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian,Shekou,Chiwan |
High quality tungsten coatd carbide stepped drill bit
Product scope and industry:
The products can be used in automotive processing, aerospace, sheet metal processing, electrical installation and maintenance industries, and the products are easy to carry to meet the needs of high-altitude work with hand drills and other tools.
Product classification:
According to the groove shape of the product, it can be divided into three types: straight groove, spiral groove and circular groove;
According to the number of products, it can be divided into single-edged, double-edged, three-blade, four-blade and multi-blade step drills;
The step drill is normal for the national standard, and most of the daily industrial use is custom-made non-standard. Generally, the manufacturers who produce the step drill can provide drawings.

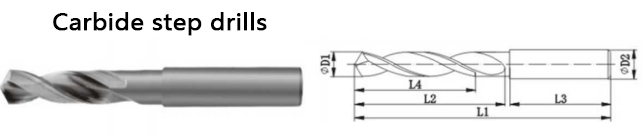

| F.D | Shank dia | O.A.L | Flute length | Length of cut section | Shank length | Module No. | |
| D1 | D2 | L1 | L2 | L3 | L4 | Uncoated | coated |
| 3 | 6 | 66 | 28 | 36 | 23 | 1100B-030 | ■ 1100B-030T |
| 4 | 6 | 66 | 28 | 36 | 23 | 1100B-035 | ■ 1100B-035T |
| 4 | 6 | 74 | 36 | 36 | 29 | 1100B-040 | ■ 1100B-040T |
| 5 | 6 | 74 | 36 | 36 | 29 | 1100B-045 | ■ 1100B-045T |
| 5 | 6 | 82 | 44 | 36 | 35 | 1100B-050 | ■ 1100B-050T |
| 6 | 6 | 82 | 44 | 36 | 35 | 1100B-055 | ■ 1100B-055T |
| 6 | 6 | 82 | 44 | 36 | 35 | 1100B-060 | ■ 1100B-060T |
| 7 | 8 | 91 | 63 | 36 | 43 | 1100B-065 | ■ 1100B-066T |
| 7 | 8 | 91 | 53 | 36 | 43 | 1100B-070 | ■ 1100B-070T |
| 8 | 8 | 91 | 53 | 36 | 43 | 1100B-075 | ■ 1100B-075T |
| 8 | 8 | 91 | 53 | 36 | 43 | 1100B-080 | ■ 1100B-080T |
| 9 | 10 | 103 | 61 | 40 | 49 | 1100B-085 | ■ 1100B-086T |
| 9 | 10 | 103 | 61 | 40 | 49 | 1100B-090 | ■ 1100B-090T |
| 10 | 10 | 103 | 61 | 40 | 49 | 1100B-096 | ■ 1100B-096T |
| 10 | 10 | 103 | 61 | 40 | 49 | 1100B-100 | ■ 1100B-100T |
| 11 | 12 | 118 | 71 | 45 | 56 | 1100B-110 | ■ 1100B-110T |
| 12 | 12 | 118 | 71 | 45 | 56 | 1100B-120 | ■1100B-120T |
| 14 | 14 | 124 | 77 | 45 | 60 | 1100B-140 | ■ 1100B-140T |
| 15 | 16 | 133 | 83 | 46 | 63 | 1100B-150 | ■ 1100B-150T |
| 16 | 16 | 133 | 83 | 48 | 63 | 1100B-160 | ■ 1100B-160T |
| 18 | 18 | 143 | 93 | 48 | 71 | 1100B-180 | ■ 1100B-180T |
| 20 | 20 | 153 | 101 | 60 | 77 | 1100B-200 | ■ 1100B-200T |
ABOUT US :
We are specialize in manufacturing PCD diamond tools and Carbide tools. Our major product inclulde PCD inserts, PCD Reamers, PCD End Mills, PCD Taps, Cabide Inserts,Carbide Drills, Carbide Reams, Taps etc.,
We also offered customized cutting tools per drawings, and provide package according to customer requirements. We manufacture a series range of cutting tools for machining of Cast iron, Aluminium alloy and Non-Ferros metal, it is widely used in all major sectors like Automobiles, Engineering, Aerospace, Aviation and 3C industry. Premium quality of raw material is used in the production and strict examination during processing with advanced equipment, so our client are satisfied with our reliable quality and on-time delivery.
Our best selling of cutting tools include PCD Inserts, PCD End Mill, PCD Ball Nose Mill, PCD Reamer, Carbide Taps, Carbide End Mill, Special Form Cutter and many more. For these years we have been made a large forward in the technologies of manufacturing cutting tools. With high quality on performance and price, our product sells well both on domestic and overseas market. And we will always focus on the quality and best service, to make long business relationship.
