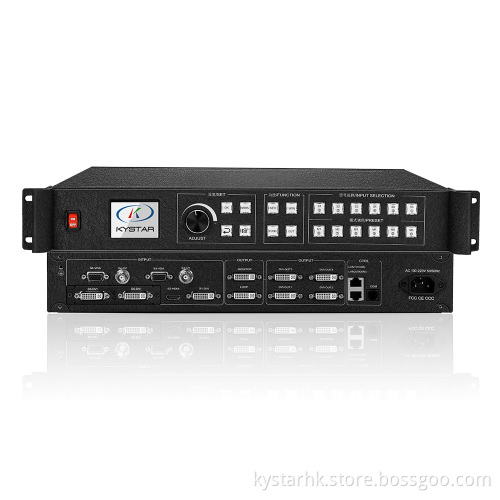

Six Windows Splicing Processor, Kystar LED Multi-window Video Wall Processor for LED Video Wall -U6

• 1x6 VIDEO WALL mode: Separates one of video sources to 6 LED displays to create a single larger image.

• 1x6 SEAMLESS SWITCHING: distributes any one of sources to either 6 LED displays simultaneously, or to 1 LED display into 6 parts forming 1x6 Video Wall.

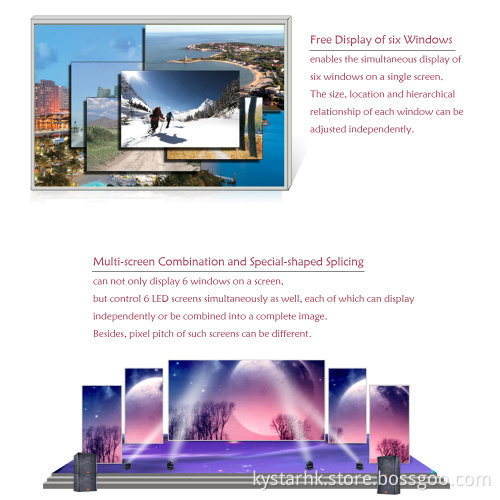

• The unit can not only display 6 windows on a screen, but control 6 LED screens simultaneously as well, each of which can display independently or be combined into a complete image.

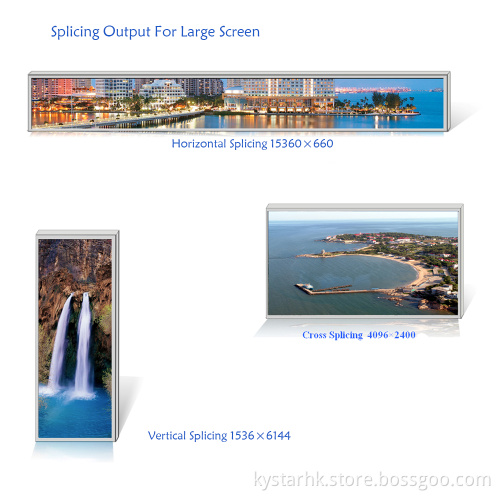

• Support Output pixels up to 15360 horizontally or 6144 vertically.Support 4K UHD signal processing.The unit supports user-define output resolution , allowing users to freely change aspect ratio of resolution and refresh rate.

• Support 1xHDMI 1xDVI 2xVGA 2xCVBS inputs and expansion 1xslot.The expansion slot DVI standard is 2 road ,it also can be optional as HDMI 1.4a,IP, SDI as well as DVI, HDMI1.3, VGA and CVBS.

• Support view real-time input and output signals by software.Support multi-image preview and output monitoring.

• Overlay of multi-group editable and global image-texts and captions.

• Seamless switching of signal and mode, with over 10 transition special effects.Support image transparency adjustment and edge feathering.

• Support hot backup of multi-level input signals and multi-machine synchronous cascade outputs.

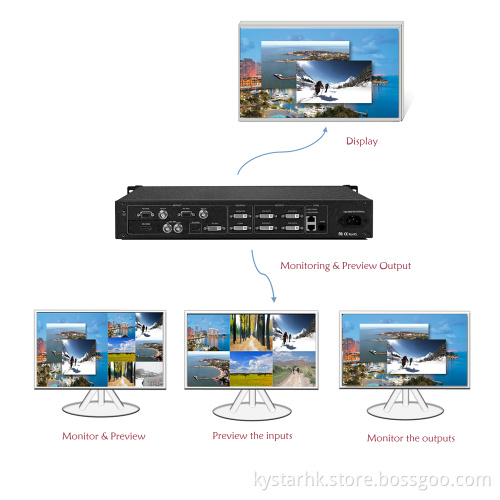

• Users can preview input signals through the monitor or monitor current output image:

3. Monitor and preview in the same time.
