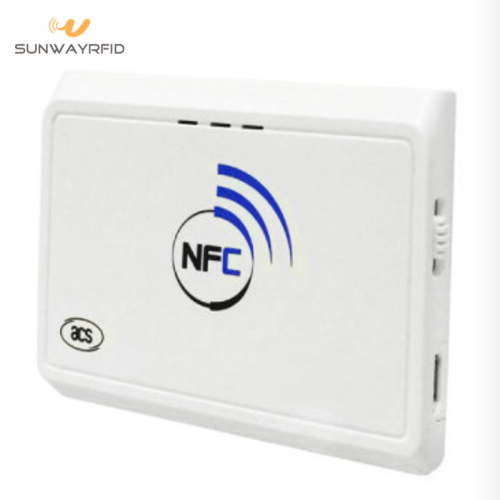

13.56mhz ACR1311U-N2 Bluetooth NFC Reader
  • 13.56mhz ACR1311U-N2 Bluetooth NFC Reader
  • 13.56mhz ACR1311U-N2 Bluetooth NFC Reader
13.56mhz ACR1311U-N2 Bluetooth NFC Reader
13.56mhz ACR1311U-N2 Bluetooth NFC Reader

13.56mhz ACR1311U-N2 Bluetooth NFC Reader

Payment Type:
L/C, T/T, Paypal, Western Union
Incoterm:
FOB, CFR, CIF
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
3 Days
Transportation:
Ocean, Air, DHL/UPS/FEDEX/TNT
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China
Productivity: 100000 PCS / Month
Supply Ability: 3,000,000pcs/month
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Certificate: ROSH/CE
HS Code: 8471900000
Transportation: Ocean,Air,DHL/UPS/FEDEX/TNT
Port: Shenzhen
Product Description
Product Description


ACR1311U-N2 Bluetooth® NFC Reader combines the latest 13.56 MHz contactless technology with Bluetooth® Smart connectivity for on-the-go smart card and NFC applications.


 Technical Informations:


Physical Characteristics

Dimensions..........................................60mm (L) × 47.98 mm (W) × 12 mm (H)

Weight.................................................. 30g
Color
..................................................... White

Lithium-ion Battery

Battery Capacity................................. 300mAh
Working Voltage.........
....................... 3.7 V DC
Working Hours
.................................... About 10 hours (full of electricity)

Bluetooth Interface

Protocol................................................Bluetooth Smart (Bluetooth Low Energy/Bluetooth 4.0)
Power Source
..................................... 300mAh Rechargeable Lithium-ion Battery (Charging through USB)

Speed...................................................1 Mbps

USB Host Interface

Protocol................................................USB Full Speed

Type......................................................Four Line: +5 V, GND, D+ and D-

Connector Type.................................. USB Micro
Power Source
..................................... From USB Port

Speed...................................................USB Full Speed (12 Mbps)
Cable Length
.......................................1 m (Detachable)

Firmware..............................................Upgradeable through USB Interface

Contactless Smart Card Interface

Standard.............................................. ISO 14443 Type A & B, MIFARE, DESFire

Protocol................................................ISO 14443 T=CL for ISO14443-4 compliant cards, and T=CL Emulation for

MIFARE Classic 1K/4K and NFC tags

Operating Frequency.........................13.56 MHz

Operating Distance............................ Up to 25 mm (depending on tag type)

Smart Card Read/Write Speed........ 106 Kbps, 212 Kbps, 424 Kbps

Antenna Size.......................................28.00 mm × 32.00 mm

Built-in Peripherals

LED.......................................................2 bi-color: Red and Blue, Red and Green

Buzzer.................................................. Monotone

Operating Conditions

Temperature........................................0-50 °C

Humidity...............................................Max. 90% (non-condensing)

MTBF....................................................500,000 hrs

Application Programming Interface

PC-linked Mode.................................. PC/SC, CT-API (through wrapper on top of PC/SC)

Certifications/Compliance

EN60950/IEC 60950, ISO 14443, USB Full Speed, Bluetooth Smart, PC/SC, CCID, RoHS 2, REACH, Microsoft® WHQL

Device Driver Operating System Support

Windows® ME, Windows® 98, Windows® 2000, Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10, Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2
Linux®, Mac OS®, AndroidTM
1, iOS2




SunwayRFID provides kinds of RFID Wristbands, NFC Wristbands, RFID Tags, RFID Cards, Fabric Wristbands, Silicone RFID Wristbands and so on.
