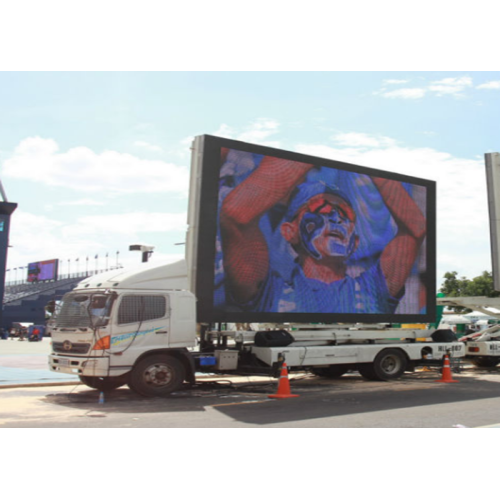

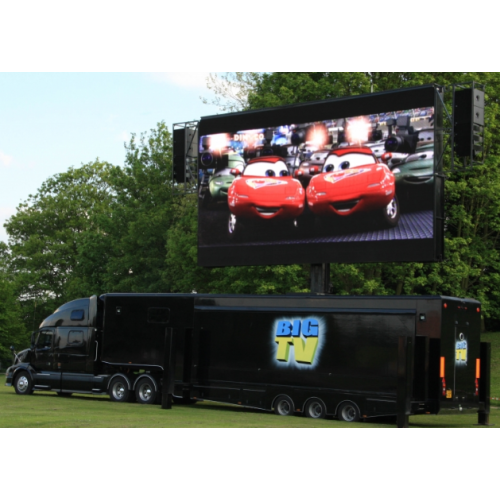

SMD3535 Mobile LED Screen Truck Mounted LED Display
  • SMD3535 Mobile LED Screen Truck Mounted LED Display
  • SMD3535 Mobile LED Screen Truck Mounted LED Display
  • SMD3535 Mobile LED Screen Truck Mounted LED Display
SMD3535 Mobile LED Screen Truck Mounted LED Display
SMD3535 Mobile LED Screen Truck Mounted LED Display
SMD3535 Mobile LED Screen Truck Mounted LED Display

SMD3535 Mobile LED Screen Truck Mounted LED Display

Payment Type:
L/C, T/T
Incoterm:
FOB, CFR, CIF, FCA, CPT
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Delivery Time:
30 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen, Guangzhou
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 6000m²/Month
Supply Ability: 6000m²/Month
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,FCA,CPT
Certificate: CCC FCC ETL CE EMC RoHS
HS Code: 8528591090
Transportation: Ocean,Land,Air
Port: Shenzhen,Guangzhou
Product Description
Product Description

Features

*Colorful:Full color LED screen consists of a number of red, green and blue LED lights composed, which form a variety of colors, can achieve high resolution effect.
*Modular design:Standardized design of the module display unit, can be arbitrarily combined, according to the needs of customers.
*Control:You can set up the content and format you want to play, and then control the screen to play around, which requires an asynchronous system.
*Multiple options:The mobile LED screen could play various multimedia files, such as picture,images,video ,animation and so on.It can also be translated into local languages according to their request with the same quality.
*Anti-shake:During the movement of the truck, it is inevitable to meet the poor road conditions. Therefore, this display adopts a shockproof material to protect the display,extended the life span of led display.
*Low Consumption, long life time:The average power consumption of 300w / m²,The life time of the led display can reach 10000 hours.
*Effective:Advertising is not subject to time and place restrictions,it owns a wide range of audiences and it is convenient and flexible.Actually,it spend a lower cost but obtains a better effect.


Details

Pixel Pitch

8mm

High definition

Pixel Density

15625px/m2

LED Type

SMD3535

LED Configuration

1R1G1B

Cabinet Dimension

1024mm*768mm

Cabinet Resolution

128*96pixels

Cabinet Weight

51kg

Cabinet Material

Cold steel

Brightness

>6500nits

Viewing Angle(H/V)

140°/140°

Ingress Protection
(front/rear)

IP65/IP54

Waterproof IP65

Driving Method

1/8Scan

Power Consumption(avg.)

300w/m2

Frame Refresh

≥ 60Hz

Data Refresh Rate

≥ 1500Hz

Gray Scale

16bit

Power Supply

AC 110/220±10%
50~60Hz

Temperature
(operating/storage)

-20~50°C
-40~60°C

Humidity(operating/storage)

10%~90%RH
10%~85%RH

MTBF

≥1000 Hours

Life Span

≥50000 Hours

Pixel Failure

<0.0003




Advantages
1.Application:promotional activities, public relations activities, product promotion, brand promotion, draft activities, sales site display,product promotion parade activities, building opening parade activities,sports events, concerts, concerts and more.
2.Cabinet structure is with standardization: Adopting high strength metal process, achieving high precision.
3With a high refresh frequency and and gray scale level ,it possess uniform image picture and realize the vivid effect.
4.Through the good structure design, ensure the stable performance and excellent thermal management.
5.Certificate: UL, CE&RoHS EMC

Trade Terms
1. Package: Wooden package, Flight case.
2. Payment: T/T, 30% deposits, 70% balance before delivery
3. Shipping port: Shenzhen
4. Warranty time: 2years
5. Delivery time:20-25 working days
