Window Ads Transparent LED Video Display

Window Ads Transparent LED Video Display

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: Within 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000sqm/month
Supply Ability:	6000sqm/month
Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,CE,ETL,RoHS,EMC
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Transparent LED Display is no doubt the best choice as windows ads player, without sacrifice ventilate and natural light with the 48%~70% transparency, you won`t miss any view from it. Transparent LED Display is ultra slim and thin, easy for installation and transportation, time and labor efficient. The quick lock system of Transparent LED Display secured quick and fast connection. Integrated power and data cables save lots of trouble when installing Transparent LED Display and make it looks tidy and elegant. Transparent LED Display can only be installed indoors, but also viewable from outside of the building, high brightness and high definition making a stunning effect of your ads to passers.

Transparent LED Display possesses transparent and modern product aesthetics which can benefit to installation over windows, glass façade and for creative event production as well. It is lightweight and ultrathin, making deployment a breeze. High transparency guarantees natural view behind the screen while delivering clear and crisp contents viewable for both day and night.

Features:

USER-FRIENDLY

SLIM DESIGN & LIGHTWEIGHT

Super Slim design with ultra lightweight(about 10kg/m²)

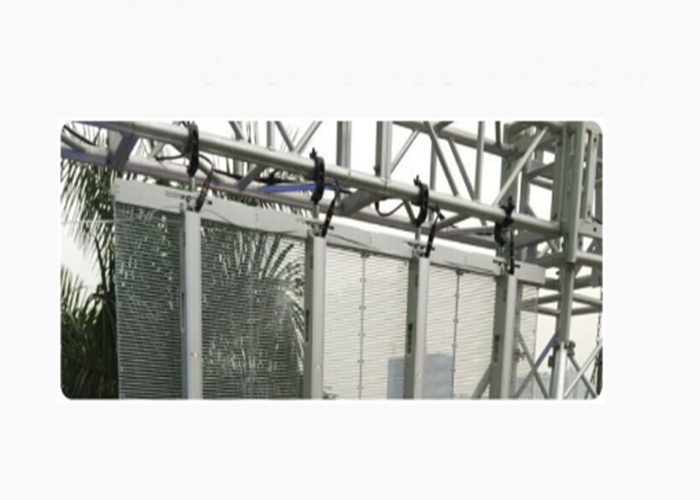

HANGING INSTALLATION

With slim and lightweight design, hanging and stacking glass panels takes no added effort.

TRANSPARENT LED DISPLAYS

QUICK LOCK SYSTEM

Quick lock system secures the vertical connection between each panel.

INTEGRATED POWER & DATA

Easy and quick interconnection between panels with integrated power and data cables.

FOR BETTER VISUAL EXPERIENCE

40%-70% TRANSPARENCY

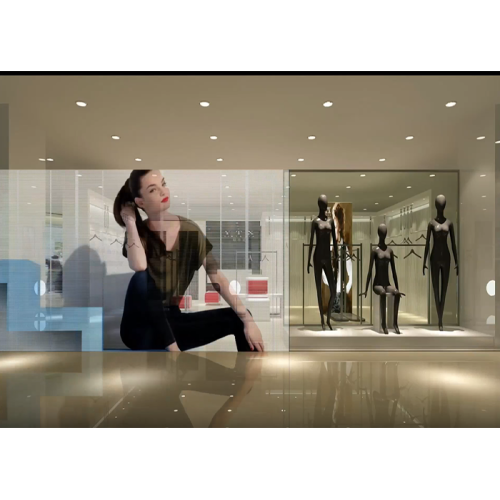

Mount over windows, glass façade at retails brand stores, shopping centers, hotels, etc.

REAR ACCESSIBILITY

Single module replacement made easy improving serviceability.

Installed indoor only, viewable from outdoor

High brightness options for the view from outside the buildings.

FOR YOUR CUSTOMER SOLUTIONS

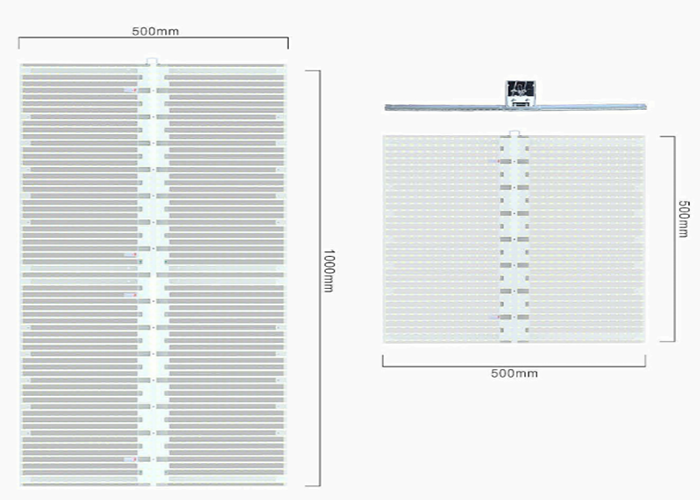

500X500mm,500X1000mm

Customizable screens with standard panel size.

GLASS WALL LED TRANSPARENT DISPLAY

Specifications:

	BG-3.75-6.67	BG-3.75-8	BG-5-6.67	BG-5-8
Physical Pitch	3.75*6.67mm	3.75*8mm	5*6.67mm	5*8mm
Pixel Configuration	SMD1921	SMD1921	SMD3528	SMD3528
Pixel Density	39,900 pixels/m²	33,250 pixels/m²	30,000 pixels/m²	25,000 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	128*48	128*40	96*48	96*40
Physical Resolution of Panel(W*H)	512*96	512*80	384*96	384*80
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	11kg/m²	10.2kg/m²	10kg/m²	9.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	207W/m²	201W/m²	209W/m²	203W/m²
Max. Power Consumption	690W/m²	670W/m²	696W/m²	670W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

	BG-7.5-8	BG-10	BG-16	BG-20
Physical Pitch	7.5*8mm	10*10mm	16*16mm	20*20mm
Pixel Configuration	SMD3528	SMD3528	SMD3528	SMD3528
Pixel Density	16,625pixels/m²	10,000 pixels/m²	3,906 pixels/m²	2,500 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	64*40	48*32	30*20	24*16
Physical Resolution of Panel(W*H)	256*80	192*64	120*40	96*32
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	9kg/m²	8kg/m²	7.2kg/m²	6.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	204W/m²	195W/m²	218W/m²	218W/m²
Max. Power Consumption	670W/m²	650W/m²	650W/m²	650W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

Description:

1.High transparency flexible led screen, ultra flexible, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized.

2.High transparency maximizes the natural light get inside of the building, also ensuring the screen has great ventilation and wind-resistance function.

3.Fast inter-panel locks make installation quick and easy especially for a large-sized screen.

4.Ultra light, a simple installation structure is enough to hold the screen, panels can be well fixed by locking the following two pieces of connector on installation structure. No need steel frame structure for installation, less impact on building

5.Both single LED strips and LED dot can be taken out for repair or replacement, which make service much more convenient.

6.Head and tail of the panel with high quality components, product can be used in harsh various environment.

showcase led display wall

OUR SERVICE:

PRE-PRODUCING:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
IN PRODUCING:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

AFTER SERVICE:

1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
3. Free training for customers in factory

4. Local Partner Installation Service

transparent LED video display
