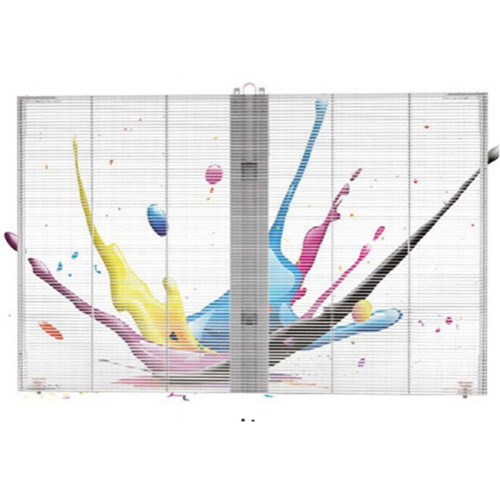

Glass Wall P3.75 P10 Transparent LED Screen Panel

Glass Wall P3.75 P10 Transparent LED Screen Panel

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

Bako Vision BG Series Transparent LED Display is a superior LED display that can be custom designed to form a unique cylinder shaped display. It is installations add pizzazz to your presentation as a solo centerpiece or as part of a larger bright transparent installation.BG Series is a 65-75% Transparent LED Display that can be placed in a window without sacrificing natural light in your space. Additional benefits include creative and artistic applications, while meeting security codes and regulations. Its slim design and high brightness can compete with direct sunlight while giving you the ability to create a dynamic experience to your customers before they enter your location. FLEXClear is perfect for any retail, hotel, shopping mall, or commercial application.

Descriptions:

Light bright transparent LED cylinder displays

transparent LED display

Customized transparent LED display

Bako Vision BG Series transparent LED displays are customized to any diameter or height. Create a stunning showroom centerpiece, elevator wrap, or cylindrical sky-scraper to generate attention with high transparency. Each cylinder is formed by four lightweight quarter curves and carefully designed and built to your specifications at our manufacturing plant and shipped preformed.

Features:

TRANSPARENT DESIGN

TRANSPARENCY

BG Series is a 65-75% transparent LED display that can be placed in a front window without sacrificing natural light in your space.

LIGHTWEIGHT DESIGN

The slim construction offers creative and artistic benefits in almost any commercial application.

curtain led transparent video display

SLIM & LIGHTWEIGHT CONSTRUCTION

QUICK LOCK FEATURE

Our quick lock system includes our king pin and Allen key click pre-lock mechanism to make panel connection faster and more secure. This unique locking system allows fast and effortless vertical panel connection in a simple 3-step process: align, lift, click and lock.

FRONT AND REAR ACCESSIBILITY

Single module replacement made easy improving serviceability.

transparent LED video display screen

HIGH-BRIGHTNESS DISPLAY

HIGH-BRIGHTNESS

Using high-brightness outdoor power supplies, the display can compete with direct sunlight exposure at peak times of the day.

BRIGHTNESS ADJUSTMENT

Your displays brightness can be easily adjusted automatically during the night to optimize viewing and also help increase the lifespan of your LED.

curtain LED video wall

STABLE, RELIABLE CONNECTIONS

Captive, locking cables and connectors guarantee safe, and reliable interconnectivity of power and data between FLEXClear panels. Signal indicators give easy visibility of panel status.

BUILT FOR PERMANENT INSTALLATION

INSTALLATION

Our cam lock system allows for easy hanging and connection between panels.

ALIGNMENT
Alignment rails and set screws give added durability to your install.

EASY SERVICABILITY
Easy access to electronics and pixels from the rear of the panel makes for improved, easy serviceability.
LED display curtain display

Specification:

	BG-3.75-6.67	BG-3.75-8	BG-5-6.67	BG-5-8
Physical Pitch	3.75*6.67mm	3.75*8mm	5*6.67mm	5*8mm
Pixel Configuration	SMD1921	SMD1921	SMD3528	SMD3528
Pixel Density	39,900 pixels/m²	33,250 pixels/m²	30,000 pixels/m²	25,000 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	128*48	128*40	96*48	96*40
Physical Resolution of Panel(W*H)	512*96	512*80	384*96	384*80
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	11kg/m²	10.2kg/m²	10kg/m²	9.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	207W/m²	201W/m²	209W/m²	203W/m²
Max. Power Consumption	690W/m²	670W/m²	696W/m²	670W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC

Our Service:

Pre-producing:

1. Get complete requirements of clients
2. To do a thorough analysis
3. Offer a most reasonable and scientific solution
4. Customized design
In producing:

1. Producing progress updating for clients
2. Particular Installation CAD and Design Diagram for clients

After service:

1. 2 years free maintenance
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
3. Free training for customers in factory
4. Local Partner Installation Service

transparent video wall
