High Transparency Windows Wall Trsansparent LED Screen

High Transparency Windows Wall Trsansparent LED Screen

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF, FCA, CPT

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Delivery Time:: 30 Days

Transportation:: Ocean, Land, Air

Port:: Shenzhen, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	6000m²/month
Supply Ability:	6000m²/month
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,FCA,CPT
Certificate:	CCC,FCC,ETL,CE,EMC,RoHS
HS Code:	8528591090
Transportation:	Ocean,Land,Air
Port:	Shenzhen,Guangzhou

Product Description

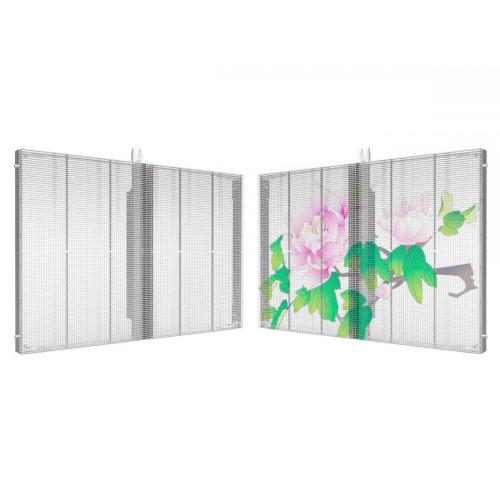

High transparency Transparent LED Display with over 80% transparency makes the glass retained its perspective lighting performance. LED lamp is invisible from a so remote distance that would have no affected to see the around space near the glass or window video wall.Using special glue, the display will directly paste on the glass video wall, only 10 seconds to curdle, no structural changes required, convenient and efficient.

Indoor Transparent

LED recessed-in design

LED lamps are recessed in the PCB board, on the one hand can protect the LED lamps, on the other hand will help to enhance the stability of LED lamps,prevent the lamps from LED damage.

Attractive and exquisite appearance

Cables hidden in the cabinet makes the whole LED display looks neat and exquisite.

No need for steel frame structure, substantial saving cost

Using special glue, the display will directly paste on the glass video wall, only 10 seconds to curdle, no structural changes required, convenient and efficient.

Easy to maintain

Indoor maintenance, quick and safe,save manpower and material resources.

Saving the building lighting project cost

Installing the glass LED display in the building can help not only saving a large part of the lighting lamps of external walls to save cost, but also making advertising income because of the more attraction of the transparent LED display.

Energy conservation and environment protection

There is no need for conventional cooling systems and air-conditioning for transparent LED screens.

Easy to operate

Widely applications

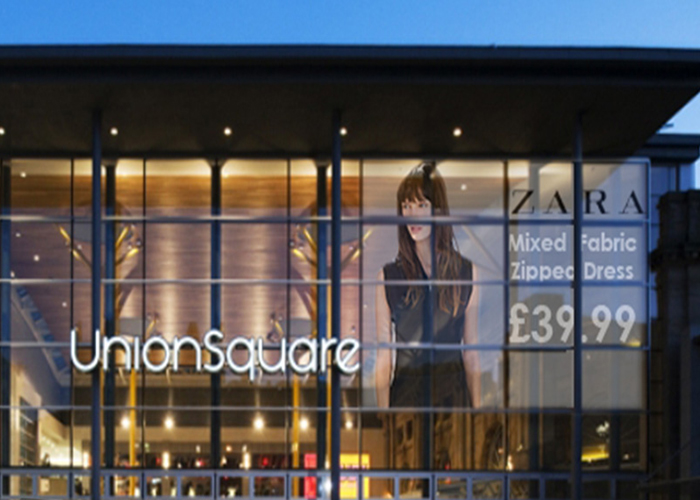

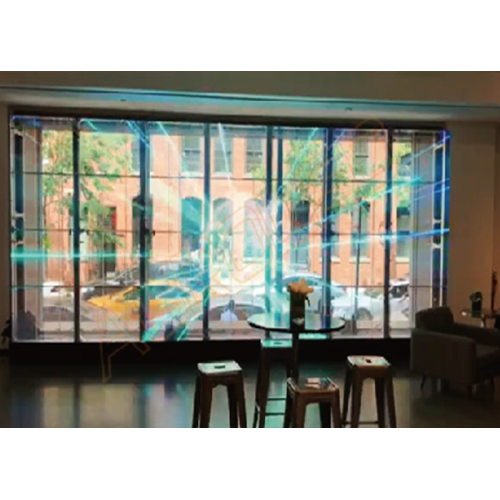

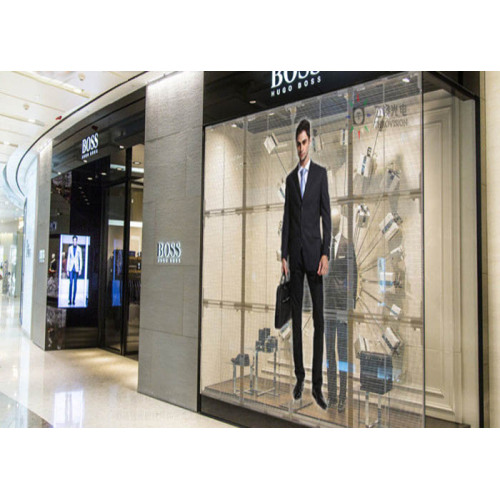

Building exterior wall, landmark building,window glass wall, headquarters building, shopping mall, airport, hotel lobby, pedestrian street, brand shop, store counter shop window, car 4s shop, bank, municipal public building, chain shop,etc.

Smart control/Simple

Smart: Screen controlled by APP

Simple: Plug & Play

Wider viewing angle/Excellent color reproduction degree

Wider viewing angle: 160°

Excellent color reproduction degree

2 years warranty/Energy efficient

Screen warranty: 2 years

Energy efficient: average power consumption is 200W/sqm

Specification:

	BG-7.5-8	BG-10	BG-16	BG-20
Physical Pitch	7.5*8mm	10*10mm	16*16mm	20*20mm
Pixel Configuration	SMD3528	SMD3528	SMD3528	SMD3528
Pixel Density	16,625pixels/m²	10,000 pixels/m²	3,906 pixels/m²	2,500 pixels/m²
Module Dimensions(W*H)(mm)	480*320	480*320	480*320	480*320
Panel Dimensions(mm)	1920*640	1920*640	1920*640	1920*640
NO. Of Modules Per Panel(W*H)	4*2	4*2	4*2	4*2
Physical Resolution of Module(W*H)	64*40	48*32	30*20	24*16
Physical Resolution of Panel(W*H)	256*80	192*64	120*40	96*32
Panel Material	Aluminium	Aluminium	Aluminium	Aluminium
Single Cabinet Weight	9kg/m²	8kg/m²	7.2kg/m²	6.5kg/m²
Processing	14-16bit	14-16bit	14-16bit	14-16bit
Colour Number	281 trillion	281 trillion	281 trillion	281 trillion
Contrast Ratio	2000:1	2000:1	2000:1	2000:1
Average Power Consumption	204W/m²	195W/m²	218W/m²	218W/m²
Max. Power Consumption	670W/m²	650W/m²	650W/m²	650W/m²
Operating Temp/Humidity	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%	-10℃-60℃/10%-60%
Storage Temp/Humidity	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%	-30℃-60℃/10%-60%
Refresh Rate	＞1920Hz	＞1920Hz	＞1920Hz	＞1920Hz
Brightness	＞5500 nits	＞5500 nits	＞5500 nits	＞5500 nits
Horizontal Viewing Angle	160°	160°	160°	160°
Vertical Viewing Angle	140°	140°	140°	140°
Expected Lifetime	100,000Hrs	100,000Hrs	100,000Hrs	100,000Hrs
IP Rating	IP30	IP30	IP30	IP30
Servicing	Rear	Rear	Rear	Rear
Certification	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC	CCC,CE,ETL,FCC
